Reassembly [09/2016 - 05/2019]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2016 - 01/2018] , or refer to PRECAUTION [01/2018 - 05/2019]
- REPAIR INSTRUCTION (w/ Black Out Tape)
Refer to PROCEDURE - Step 1
- INSTALL REAR DOOR UPPER OUTSIDE STRIPE (w/ Black Out Tape)
Refer to PROCEDURE - Step 2
- INSTALL REAR DOOR OUTSIDE STRIPE (w/ Black Out Tape)
Refer to PROCEDURE - Step 3
- INSTALL REAR DOOR LOWER OUTSIDE STRIPE (w/ Black Out Tape)
Refer to PROCEDURE - Step 4
- INSTALL REAR DOOR REAR WINDOW FRAME MOLDING
Refer to PROCEDURE - Step 1
- INSTALL REAR DOOR UPPER WINDOW FRAME MOLDING
Refer to PROCEDURE - Step 2
- INSTALL REAR DOOR FRONT WINDOW FRAME MOLDING
Refer to PROCEDURE - Step 3
- INSTALL REAR DOOR BELT MOLDING ASSEMBLY
Refer to PROCEDURE - Step 1

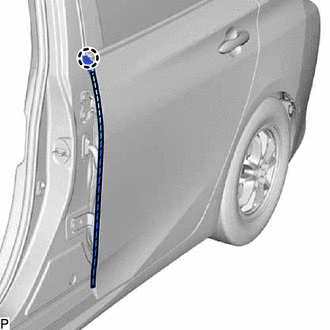

- INSTALL REAR DOOR NO. 3 WEATHERSTRIP
- INSTALL REAR DOOR DUST PROOF SEAL

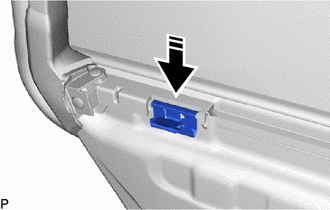

- INSTALL REAR DOOR PANEL CUSHION

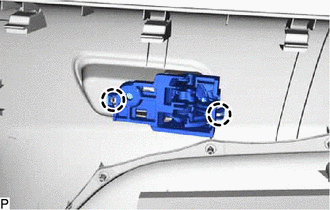

- INSTALL REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
- Apply MP grease to the sliding parts of the rear door outside handle frame sub-assembly.
- Engage the claw as shown in the illustration.
*A Outside *B Inside - Using a T30 "TORX" socket wrench, install the rear door outside handle frame sub-assembly with the screw.
Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

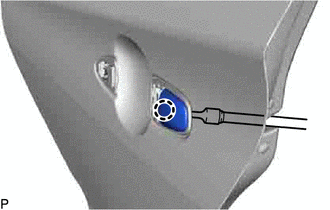

- INSTALL REAR DOOR REAR OUTSIDE HANDLE PAD
- INSTALL REAR DOOR FRONT OUTSIDE HANDLE PAD

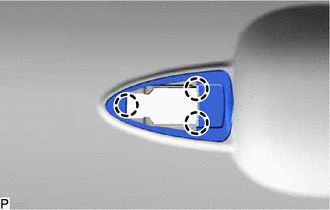

- INSTALL REAR DOOR OUTSIDE HANDLE COVER
- INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY

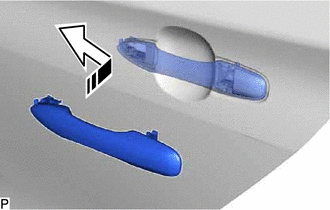

- Insert the front end of the rear door outside handle assembly into the rear door outside handle frame sub-assembly.
Install in this Direction - Insert the rear end of the rear door outside handle assembly into the rear door outside handle frame sub-assembly, then slide the rear door outside handle assembly toward the front of the vehicle to install it.

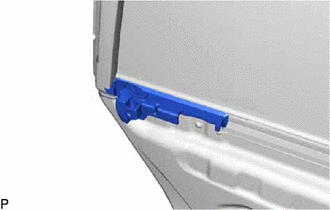

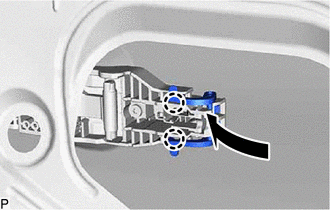

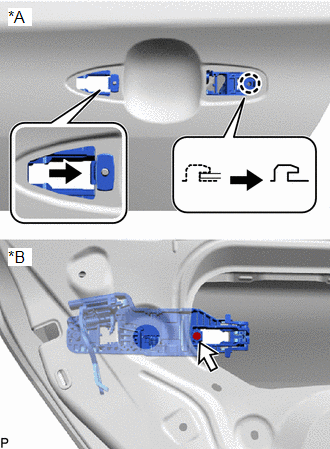

- Move the lever as shown in the illustration and engage the 2 claws to secure the rear door outside handle assembly.
- Insert the front end of the rear door outside handle assembly into the rear door outside handle frame sub-assembly.
- INSTALL REAR DOOR LOCK WITH MOTOR ASSEMBLY
Refer to PROCEDURE - Step 4
- INSTALL REAR DOOR WINDOW REGULATOR ASSEMBLY
- Apply MP grease to the sliding parts of the rear door window regulator assembly.

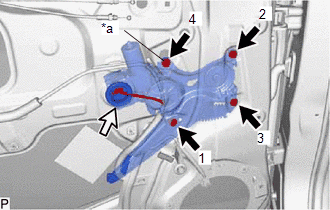

- Temporarily install the temporary bolt to the rear door window regulator assembly.
- Temporarily install the rear door window regulator assembly with the 3 bolts.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Temporary Bolt - Tighten the temporary bolt and 3 bolts to install the rear door window regulator assembly.
HINT:
Tighten the bolts in the order shown in the illustration.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Connect the connector.
- INSTALL REAR DOOR GLASS CHANNEL FILLER
- Apply soapy water to a new rear door glass channel filler.
- Install the rear door glass channel filler to the rear door glass sub-assembly at position shown in the illustration.

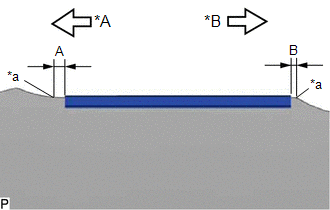

*A Front Side *B Rear Side *a Edge of curved surface STANDARD DIMENSIONArea Measurement A 5.0 mm (0.197 in.) B 5.0 mm (0.197 in.)
- INSTALL REAR DOOR GLASS CHANNEL SUB-ASSEMBLY
- Apply soapy water to the channel filler side of the rear door glass channel sub-assembly.
- Using a plastic hammer, install the rear door glass channel sub-assembly to the position shown in the illustration.
*A Front Side *B Rear Side *a Edge of curved surface STANDARD DIMENSIONArea Measurement A 5.0 mm (0.197 in.) B 5.0 mm (0.197 in.) NOTE:To prevent damaging the rear door glass sub-assembly, be careful not to strike the channel with too much force.

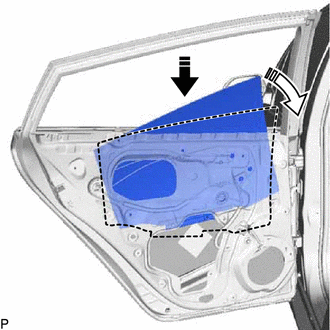

- INSTALL REAR DOOR GLASS SUB-ASSEMBLY

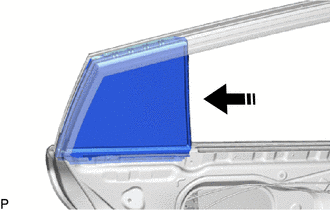

- INSTALL REAR DOOR QUARTER WINDOW GLASS

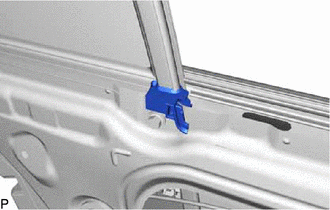

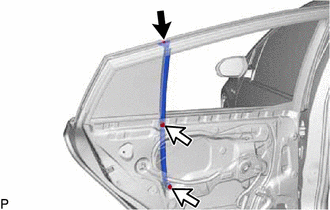

- INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

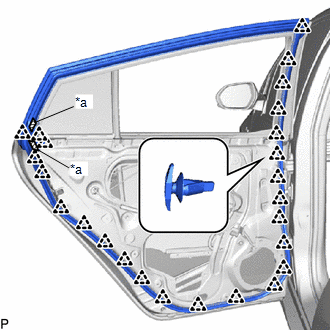

- INSTALL REAR DOOR WEATHERSTRIP
- INSTALL REAR DOOR CHECK ASSEMBLY
- Apply MP grease to the sliding parts of the rear door check assembly.
- Clean the bolt hole in the vehicle body.
- Clean the threads of the bolt (B).
- Apply adhesive to the threads of the bolt (B).
Adhesive
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

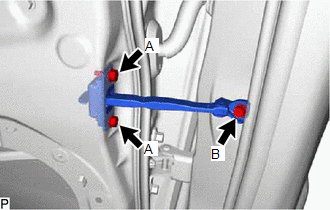

- Install the rear door check assembly with the 3 bolts.
Bolt (A)
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
Bolt (B)
Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

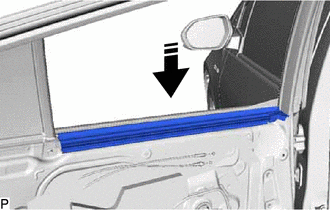

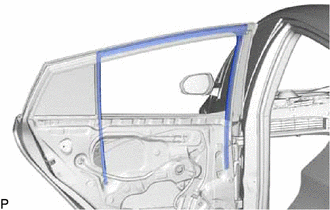

- INSTALL REAR DOOR GLASS RUN
- INSTALL REAR DOOR NO. 2 SERVICE HOLE COVER
- INSTALL REAR DOOR PANEL PROTECTOR
- INSTALL REAR DOOR SERVICE HOLE COVER

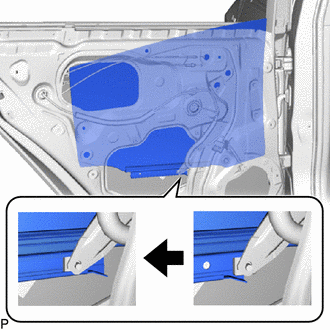

- Apply new butyl tape to the rear door panel.
- Pass the rear door lock remote control cable assembly and rear door inside locking cable assembly through a new rear door service hole cover.

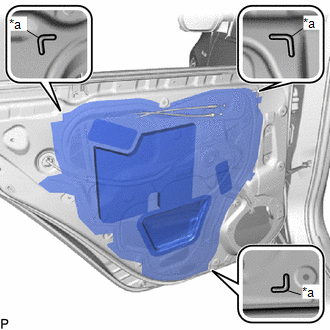

*a Reference Point - Attach the rear door service hole cover according to the reference points on the rear door panel.NOTE:
Securely install the rear door service hole cover preventing wrinkles and air bubbles.

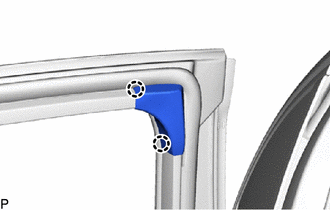

- INSTALL REAR DOOR FRAME GARNISH
- INSTALL REAR SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 1

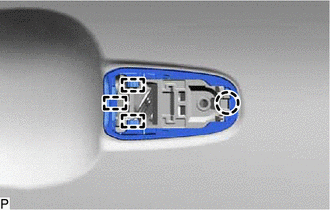

- INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
- INSTALL REAR DOOR NO. 2 VENT SEAL
- INSTALL REAR DOOR INNER GLASS WEATHERSTRIP WITH REAR DOOR NO. 2 VENT SEAL
- INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

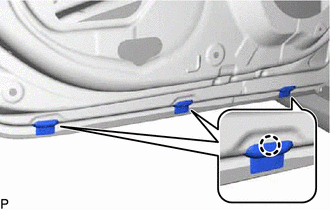

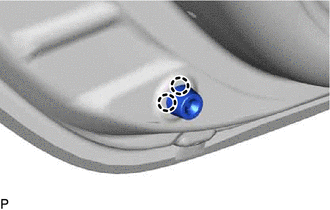

- Install the No. 1 door scuff plate clamp as shown in the illustration.

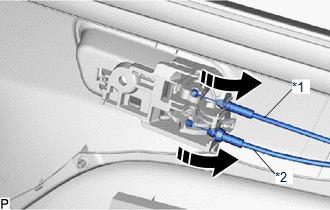

Install in this Direction - Connect the rear door lock remote control cable assembly and rear door inside locking cable assembly to the rear door inside handle sub-assembly as shown in the illustration.
*1 Rear Door Inside Locking Cable Assembly *2 Rear Door Lock Remote Control Cable Assembly Install in this Direction - Engage the 6 claws and guide.

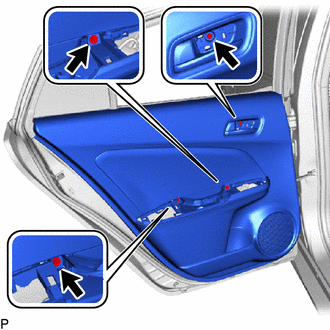

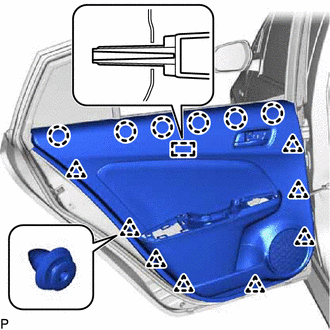

- Engage the 8 clips to install the rear door trim board sub-assembly.
- Install the 3 screws.
- Install the No. 1 door scuff plate clamp as shown in the illustration.

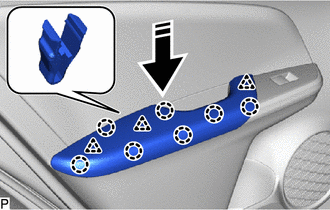

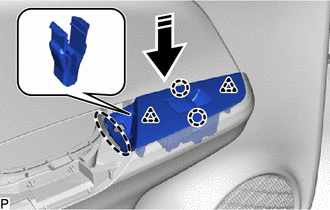

- INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
- INSTALL REAR ARMREST ASSEMBLY

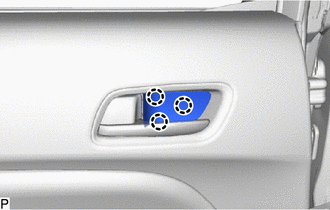

- INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [09/2016 - 05/2019]
- INITIALIZE POWER WINDOW CONTROL SYSTEM
Refer to INITIALIZATION [09/2016 - ]
- INSPECT POWER WINDOW OPERATION
Refer to OPERATION CHECK [09/2016 - 12/2018] , or refer to OPERATION CHECK [12/2018 - ]
