Components [09/2016 - 05/2019]

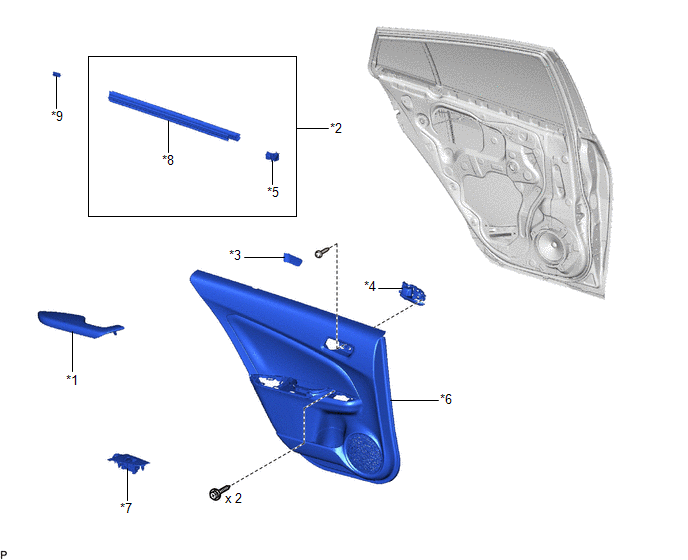

| *1 | REAR ARMREST ASSEMBLY | *2 | REAR DOOR INNER GLASS WEATHERSTRIP WITH REAR DOOR NO. 2 VENT SEAL |
| *3 | REAR DOOR INSIDE HANDLE BEZEL PLUG | *4 | REAR DOOR INSIDE HANDLE SUB-ASSEMBLY |
| *5 | REAR DOOR NO. 2 VENT SEAL | *6 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| *7 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL | *8 | REAR DOOR INNER GLASS WEATHERSTRIP |
| *9 | NO. 1 DOOR SCUFF PLATE CLAMP | - | - |
| Callout | Description | Callout | Description |

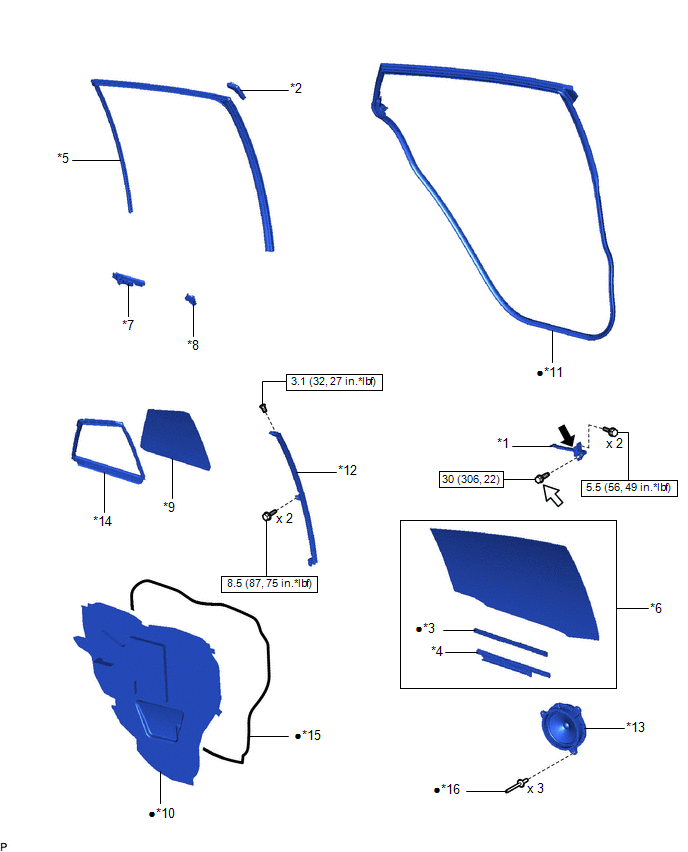

| *1 | REAR DOOR CHECK ASSEMBLY | *2 | REAR DOOR FRAME GARNISH |
| *3 | REAR DOOR GLASS CHANNEL FILLER | *4 | REAR DOOR GLASS CHANNEL SUB-ASSEMBLY |
| *5 | REAR DOOR GLASS RUN | *6 | REAR DOOR GLASS SUB-ASSEMBLY |
| *7 | REAR DOOR NO. 2 SERVICE HOLE COVER | *8 | REAR DOOR PANEL PROTECTOR |
| *9 | REAR DOOR QUARTER WINDOW GLASS | *10 | REAR DOOR SERVICE HOLE COVER |
| *11 | REAR DOOR WEATHERSTRIP | *12 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY |
| *13 | REAR SPEAKER ASSEMBLY | *14 | REAR DOOR QUARTER WINDOW GLASS WEATHERSTRIP |
| *15 | BUTYL TAPE | *16 | RIVET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ||
| * | Precoated part | - | - |
| Callout | Description | Callout | Description |
| *A | for Type A | *B | for Type B |

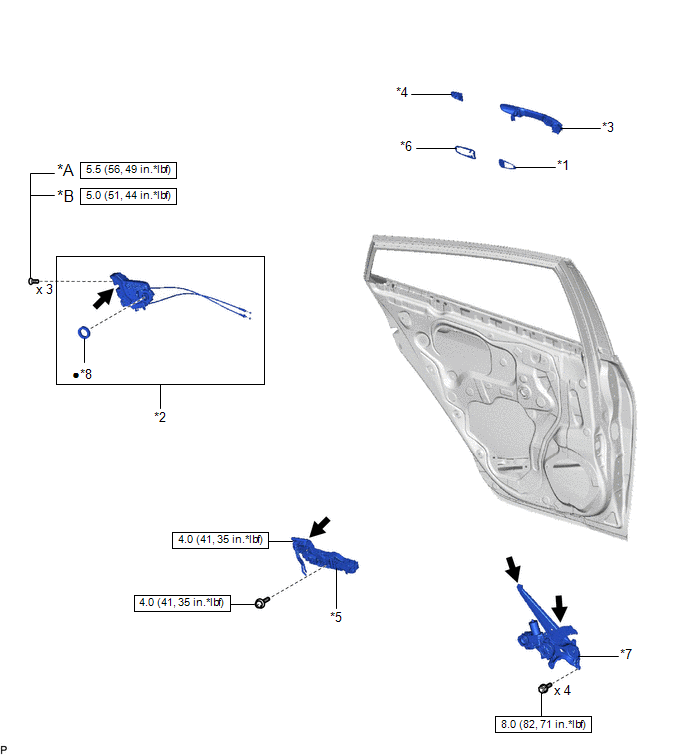

| *1 | REAR DOOR FRONT OUTSIDE HANDLE PAD | *2 | REAR DOOR LOCK WITH MOTOR ASSEMBLY |
| *3 | REAR DOOR OUTSIDE HANDLE ASSEMBLY | *4 | REAR DOOR OUTSIDE HANDLE COVER |
| *5 | REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY | *6 | REAR DOOR REAR OUTSIDE HANDLE PAD |
| *7 | REAR DOOR WINDOW REGULATOR ASSEMBLY | *8 | DOOR LOCK WIRING HARNESS SEAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
| *A | w/ Black Out Tape | - | - |

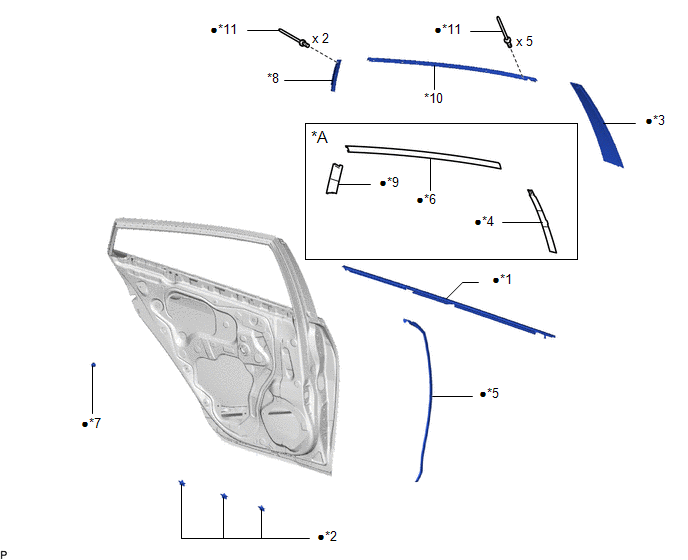

| *1 | REAR DOOR BELT MOLDING ASSEMBLY | *2 | REAR DOOR DUST PROOF SEAL |
| *3 | REAR DOOR FRONT WINDOW FRAME MOLDING | *4 | REAR DOOR LOWER OUTSIDE STRIPE |
| *5 | REAR DOOR NO. 3 WEATHERSTRIP | *6 | REAR DOOR OUTSIDE STRIPE |
| *7 | REAR DOOR PANEL CUSHION | *8 | REAR DOOR REAR WINDOW FRAME MOLDING |
| *9 | REAR DOOR UPPER OUTSIDE STRIPE | *10 | REAR DOOR UPPER WINDOW FRAME MOLDING |
| *11 | RIVET | - | - |
| • | Non-reusable part | - | - |
