Rear Door Opening Trim Weatherstrip
>>
Components [09/2016 - ]
Components [09/2016 - ]

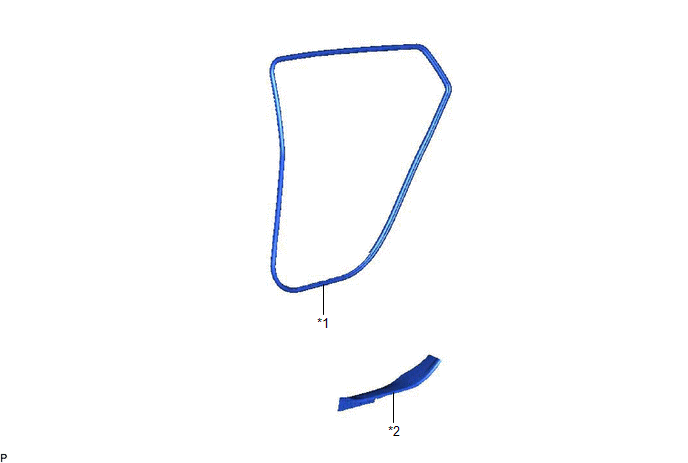

Fig 1: Rear Door Opening Trim Weatherstrip Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR DOOR OPENING TRIM WEATHERSTRIP
*2
REAR DOOR SCUFF PLATE
