Components [09/2016 - ]

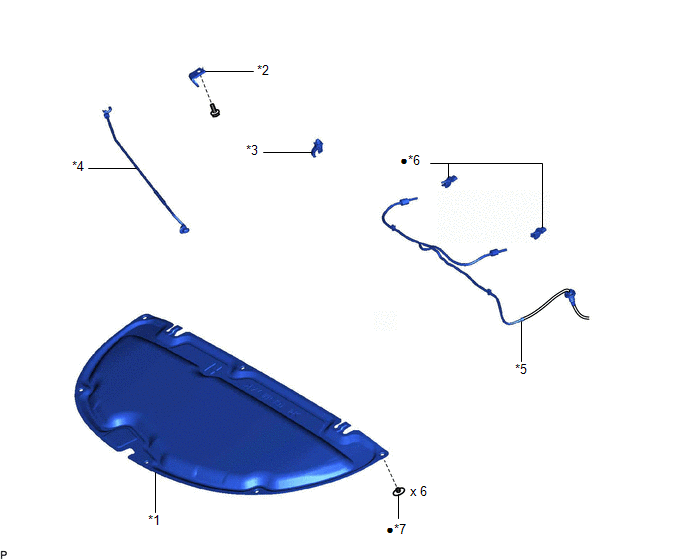

Fig 1: Hood Replacement Components
GTY702728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HOOD INSULATOR *2 HOOD STAY BRACKET
*3 HOOD STAY HOLDER *4 HOOD SUPPORT ASSEMBLY
*5 WASHER HOSE ASSEMBLY *6 WASHER NOZZLE SUB-ASSEMBLY
*7 HOOD INSULATOR CLIP - -
• Non-reusable part - -
