Components [09/2016 - ]
| *A | for Front Passenger Side | *B | for Driver Side |

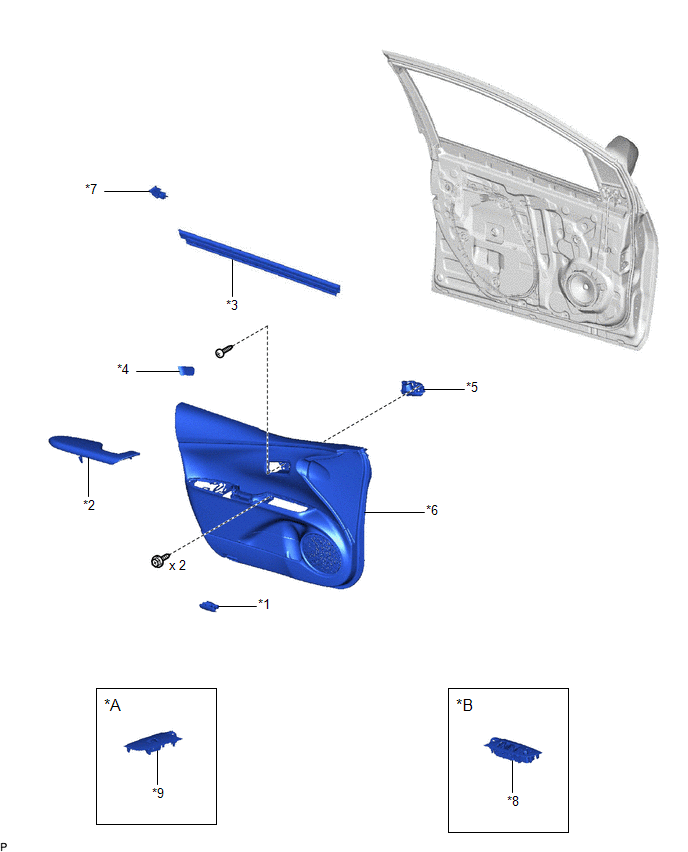

| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT ARMREST ASSEMBLY |
| *3 | FRONT DOOR INNER GLASS WEATHERSTRIP | *4 | FRONT DOOR INSIDE HANDLE BEZEL PLUG |
| *5 | FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY | *6 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
| *7 | FRONT DOOR VENT SEAL | *8 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| *9 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | - | - |
| Callout | Description | Callout | Description |

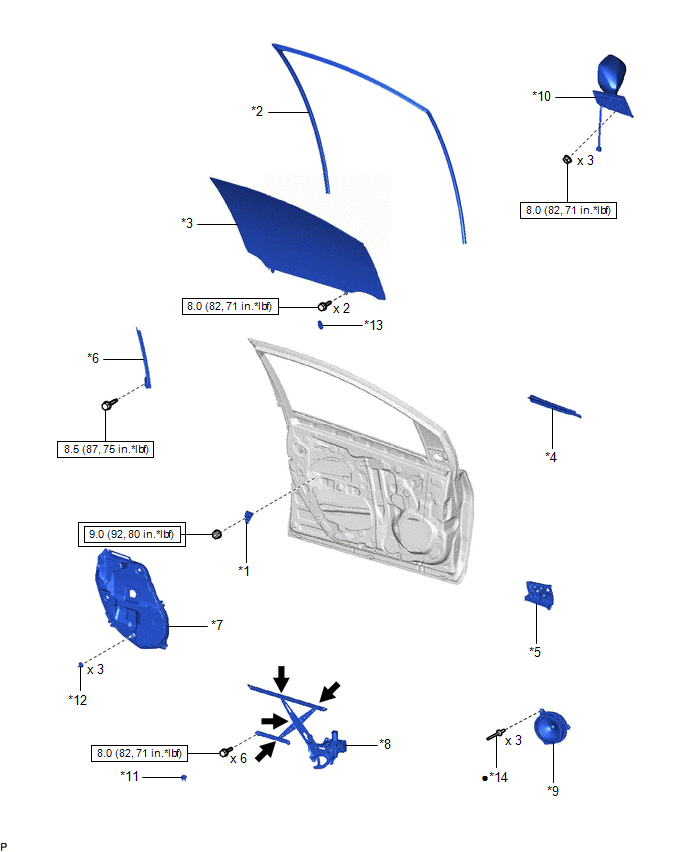

| *1 | DOOR SIDE AIRBAG SENSOR | *2 | FRONT DOOR GLASS RUN |
| *3 | FRONT DOOR GLASS SUB-ASSEMBLY | *4 | FRONT DOOR NO. 3 SERVICE HOLE COVER |
| *5 | FRONT DOOR PANEL PROTECTOR | *6 | FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY |
| *7 | FRONT DOOR SERVICE HOLE COVER | *8 | FRONT DOOR WINDOW REGULATOR ASSEMBLY |
| *9 | FRONT NO. 1 SPEAKER ASSEMBLY | *10 | OUTER REAR VIEW MIRROR ASSEMBLY |
| *11 | FRONT DOOR NO. 2 SERVICE HOLE COVER | *12 | FRONT DOOR WEATHERSTRIP CLIP |
| *13 | HOLE PLUG | *14 | RIVET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | MP grease |
| Callout | Description | Callout | Description |
| *A | for Front Passenger Side | *B | for Driver Side |
| *C | for Type A | *D | for Type B |

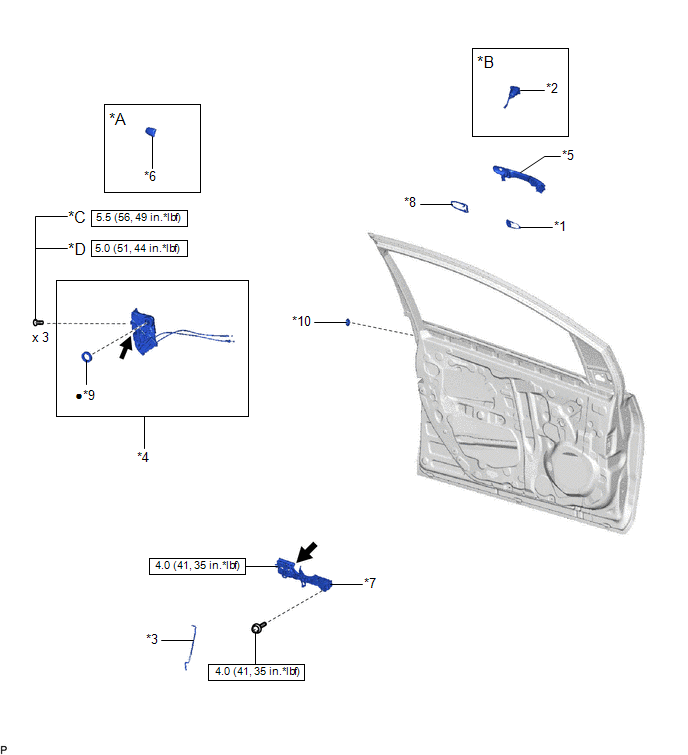

| *1 | FRONT DOOR FRONT OUTSIDE HANDLE PAD | *2 | FRONT DOOR LOCK CYLINDER ASSEMBLY |
| *3 | FRONT DOOR LOCK OPEN ROD | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY |
| *5 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY | *6 | FRONT DOOR OUTSIDE HANDLE COVER |
| *7 | FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY | *8 | FRONT DOOR REAR OUTSIDE HANDLE PAD |
| *9 | DOOR LOCK WIRING HARNESS SEAL | *10 | HOLE PLUG |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
| Callout | Description | Callout | Description |
| *A | w/ Black Out Tape | - | - |

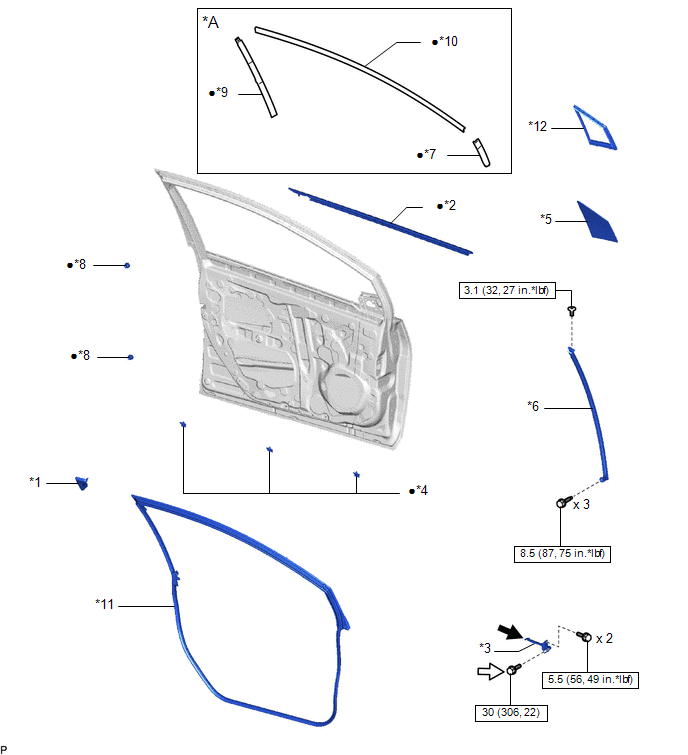

| *1 | DOOR FRAME GARNISH | *2 | FRONT DOOR BELT MOLDING ASSEMBLY |
| *3 | FRONT DOOR CHECK ASSEMBLY | *4 | FRONT DOOR DUST PROOF SEAL |
| *5 | FRONT DOOR FIX WINDOW GLASS | *6 | FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY |
| *7 | FRONT DOOR LOWER OUTSIDE STRIPE | *8 | FRONT DOOR PANEL CUSHION |
| *9 | FRONT DOOR REAR OUTSIDE STRIPE | *10 | FRONT DOOR STRIPE |
| *11 | FRONT DOOR WEATHERSTRIP | *12 | FRONT DOOR FIX WINDOW WEATHERSTRIP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ||
| * | Precoated part | - | - |
| Callout | Description | Callout | Description |

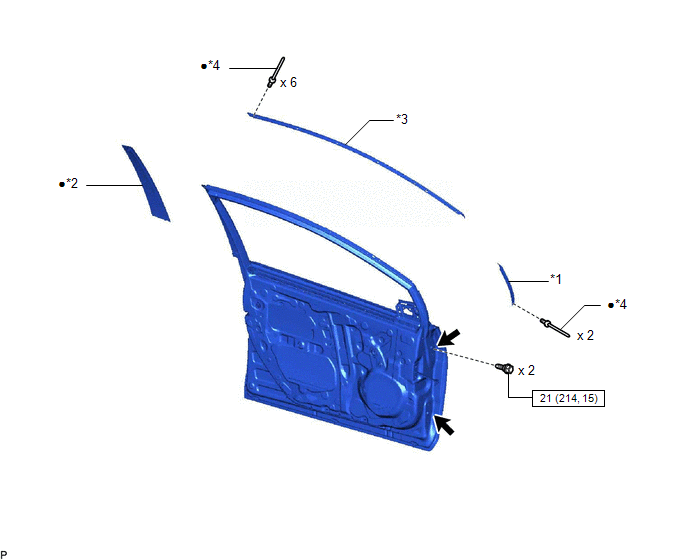

| *1 | FRONT DOOR FRONT WINDOW FRAME MOLDING | *2 | FRONT DOOR REAR WINDOW FRAME MOLDING |
| *3 | FRONT DOOR UPPER WINDOW FRAME MOLDING | *4 | RIVET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Anti-rust coating | - | - |

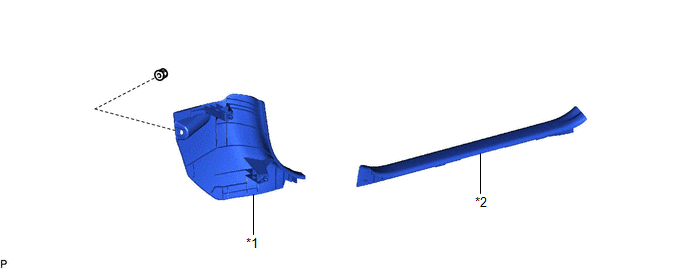

| *1 | COWL SIDE TRIM BOARD | *2 | FRONT DOOR SCUFF PLATE |
