Components [09/2016 - 05/2019]

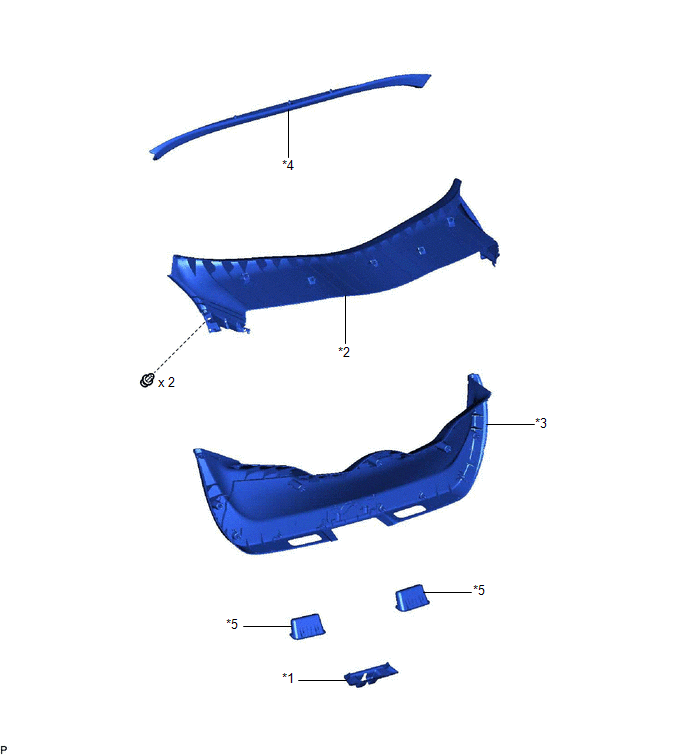

Fig 1: Back Door Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BACK DOOR LOCK COVER	*2	BACK DOOR TRIM BOARD
*3	BACK DOOR TRIM BOARD ASSEMBLY	*4	BACK DOOR UPPER TRIM PANEL ASSEMBLY
*5	DOOR PULL HANDLE	-	-

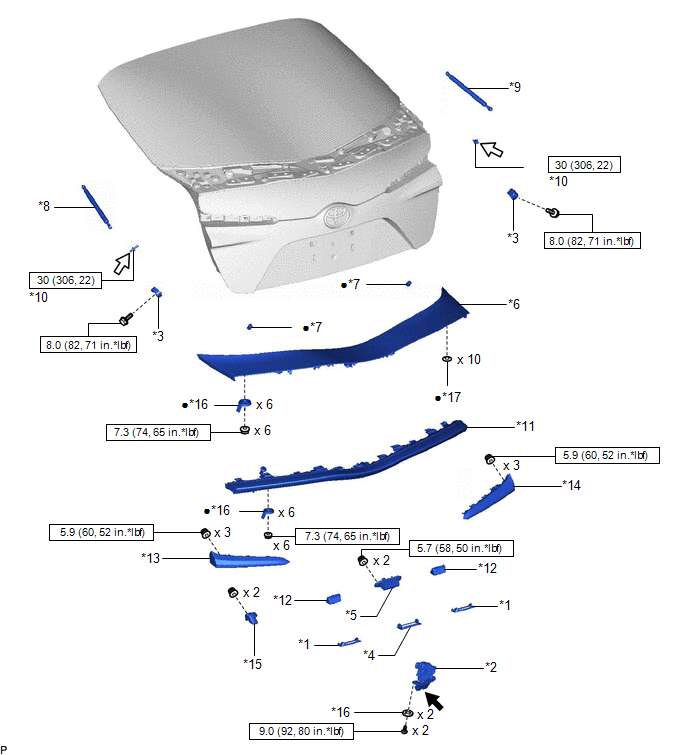

Fig 2: Back Door Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BACK DOOR FINISH PANEL COVER	*2	BACK DOOR LOCK ASSEMBLY
*3	BACK DOOR LOWER STOPPER	*4	BACK DOOR NO. 1 FINISH PANEL PROTECTOR
*5	BACK DOOR OPENER SWITCH ASSEMBLY	*6	BACK DOOR OUTSIDE GARNISH ASSEMBLY
*7	BACK DOOR PANEL CUSHION	*8	BACK DOOR STAY ASSEMBLY LH
*9	BACK DOOR STAY ASSEMBLY RH	*10	BACK DOOR STAY BOLT
*11	CENTER STOP LIGHT SET	*12	LICENSE PLATE LIGHT ASSEMBLY
*13	REAR LIGHT ASSEMBLY LH	*14	REAR LIGHT ASSEMBLY RH
*15	REAR TELEVISION CAMERA ASSEMBLY	*16	COLLAR
*17	GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease		Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
*	Precoated part	-	-

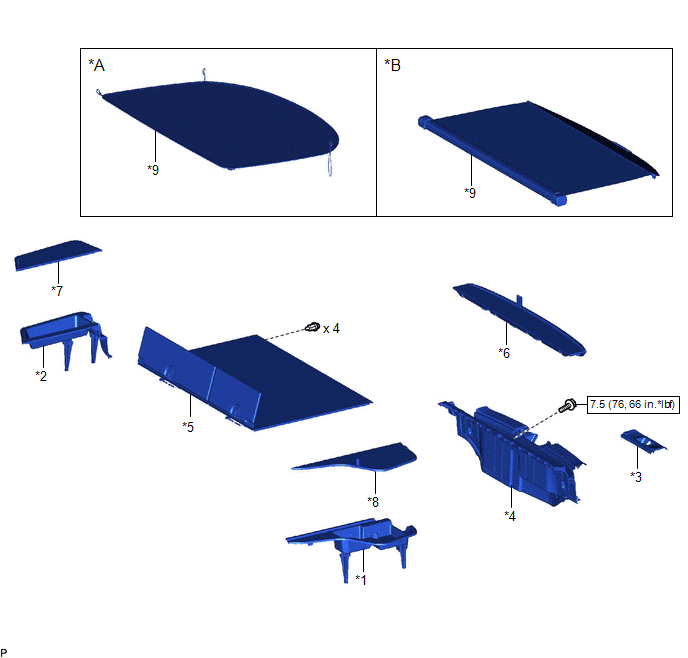

Fig 3: Back Door Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Garage Door Opener System	*B	w/ Garage Door Opener System
*1	DECK FLOOR BOX LH	*2	DECK FLOOR BOX RH
*3	DECK TRIM SERVICE HOLE COVER	*4	REAR DECK TRIM COVER
*5	REAR NO. 1 FLOOR BOARD	*6	REAR NO. 2 FLOOR BOARD
*7	REAR NO. 3 FLOOR BOARD	*8	REAR NO. 4 FLOOR BOARD
*9	TONNEAU COVER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

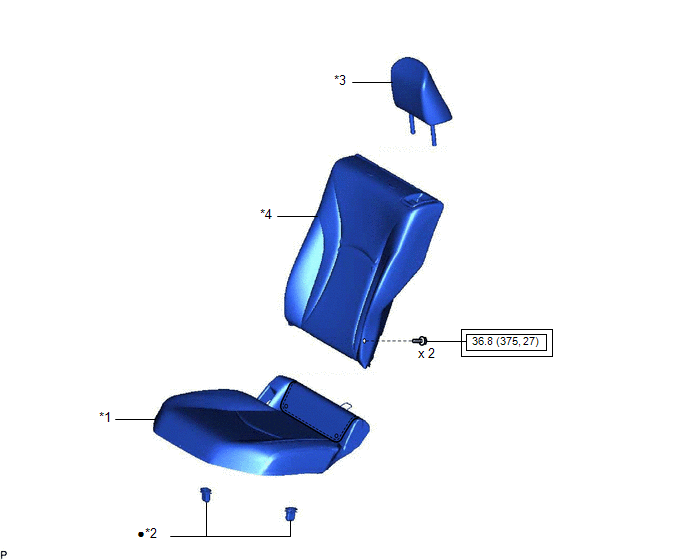

Fig 4: Back Door Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SEAT CUSHION ASSEMBLY LH	*2	REAR SEAT CUSHION LOCK HOOK
*3	REAR SEAT HEADREST ASSEMBLY	*4	REAR SEATBACK ASSEMBLY LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	•	Non-reusable part

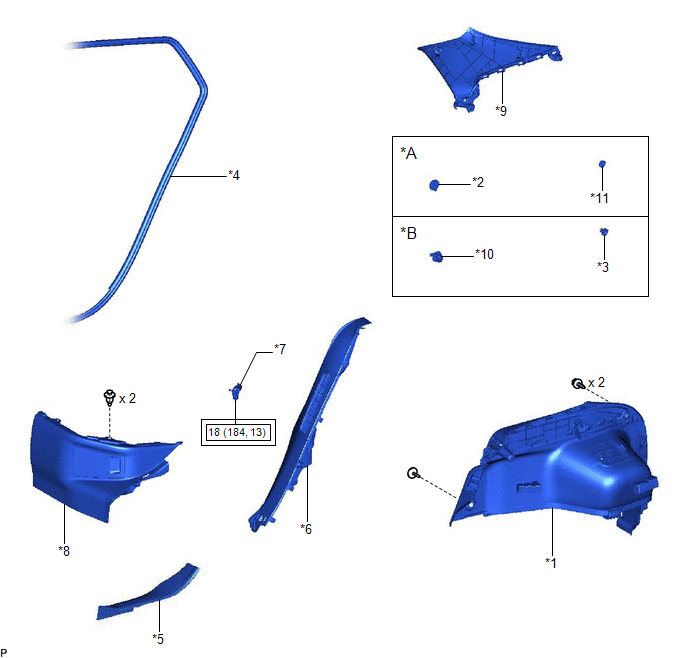

Fig 5: Back Door Replacement Components With Torque Specifications (5 Of 6)

Callout	Description	Callout	Description
*A	w/ Garage Door Opener System	*B	w/o Garage Door Opener System
*1	DECK TRIM SIDE PANEL ASSEMBLY LH	*2	NO. 1 TONNEAU COVER HOLDER CAP
*3	NO. 2 ROPE HOOK	*4	REAR DOOR OPENING TRIM WEATHERSTRIP LH
*5	REAR DOOR SCUFF PLATE LH	*6	REAR SEAT SIDE GARNISH LH
*7	REAR SEATBACK HINGE SUB-ASSEMBLY LH	*8	REAR UNDER SIDE COVER LH
*9	ROOF SIDE INNER GARNISH ASSEMBLY LH	*10	ROPE HOOK
*11	TONNEAU COVER HOOK A	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Fig 6: Back Door Replacement Components (6 Of 6)
