Removal [09/2016 - 07/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2016 - 01/2018] , or refer to PRECAUTION [01/2018 - 05/2019] , or refer to PRECAUTION [05/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2016 - 05/2019] , or refer to INITIALIZATION [05/2019 - 07/2020]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 6

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE FRONT DOOR VENT SEAL

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 10

  11. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 16

  12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  13. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 20

  14. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  15. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 22

  16. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 23

  17. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

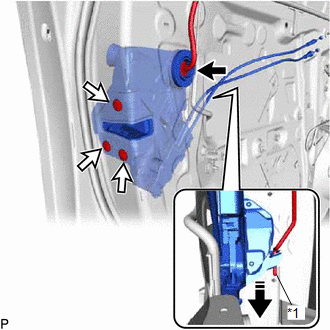

    1. Disconnect the connector.
      GTY572949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod
      Remove in this Direction
    2. Using a T30 "TORX" socket wrench, remove the 3 screws.
    3. Slide the front door lock with motor assembly downward to disconnect the front door lock open rod and remove the front door lock with motor assembly and cables as a unit.
    4. When reusing the front door lock with motor assembly:

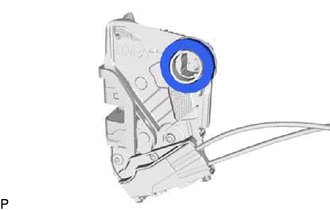

      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.
        GTY560731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

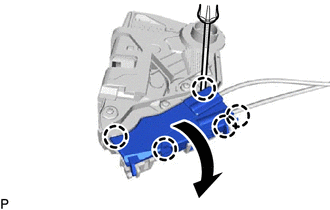

    1. Using a screwdriver, disengage the 5 claws to open the cover as shown in the illustration.
      GTY560735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

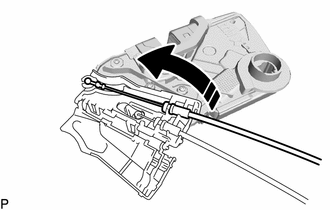

    2. Remove the front door lock remote control cable assembly as shown in the illustration.
      GTY605675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

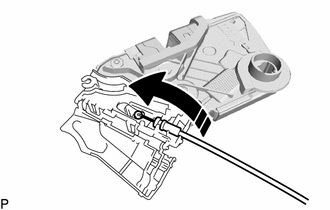

    1. Remove the front door inside locking cable assembly as shown in the illustration.
      GTY576577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
