Removal [12/2018 - ]: Procedure

Refer to REMOVAL [09/2016 - 07/2020] , or refer to REMOVAL [07/2020 - ]

1. Remove the 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 5 screws and grommet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

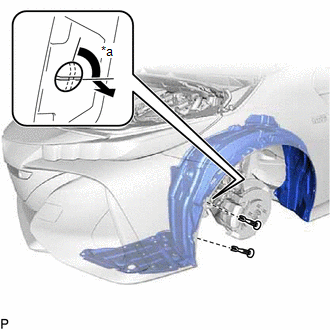

3. Using a screwdriver, turn each pin hold clip 90 degrees and remove the 2 pin hold clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   90°

4. Remove the 10 clips and front fender liner LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use a container to collect the washer fluid.

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Remove the windshield washer motor and pump assembly as shown in the illustration.
