Parts Location [11/2017 - 12/2018]: Illustration

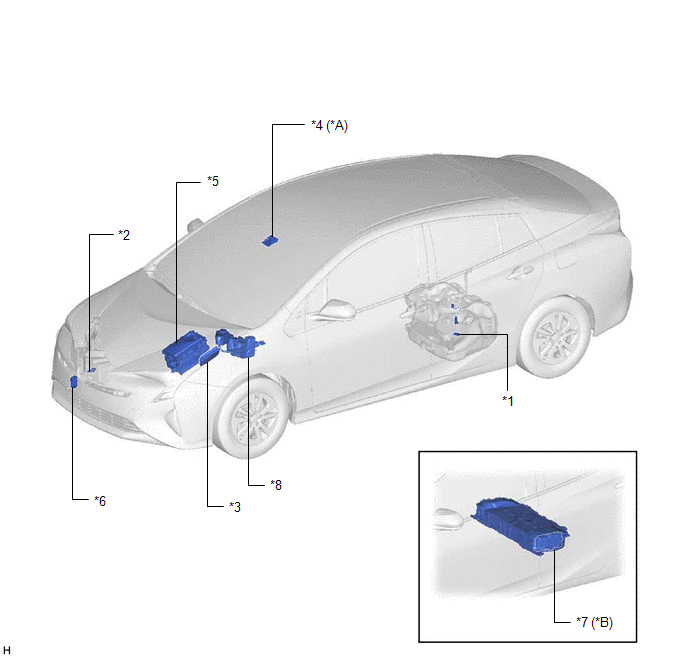

| *A | w/ Lane Departure Alert System | *B | for Lithium-ion Battery |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | ECM | *4 | FORWARD RECOGNITION CAMERA |
| *5 | INVERTER WITH CONVERTER ASSEMBLY | *6 | SWING GRILL ACTUATOR ASSEMBLY |
| *7 | BATTERY ECU ASSEMBLY | *8 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |

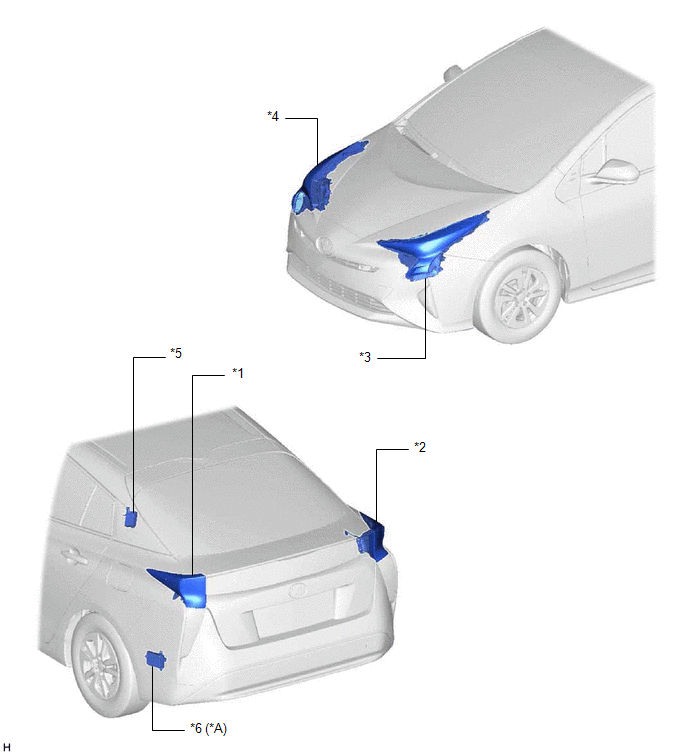

| *A | w/ Blind Spot Monitor System | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | HEADLIGHT ASSEMBLY LH | *4 | HEADLIGHT ASSEMBLY RH |
| *5 | TIRE PRESSURE WARNING ECU AND RECEIVER | *6 | BLIND SPOT MONITOR SENSOR LH |

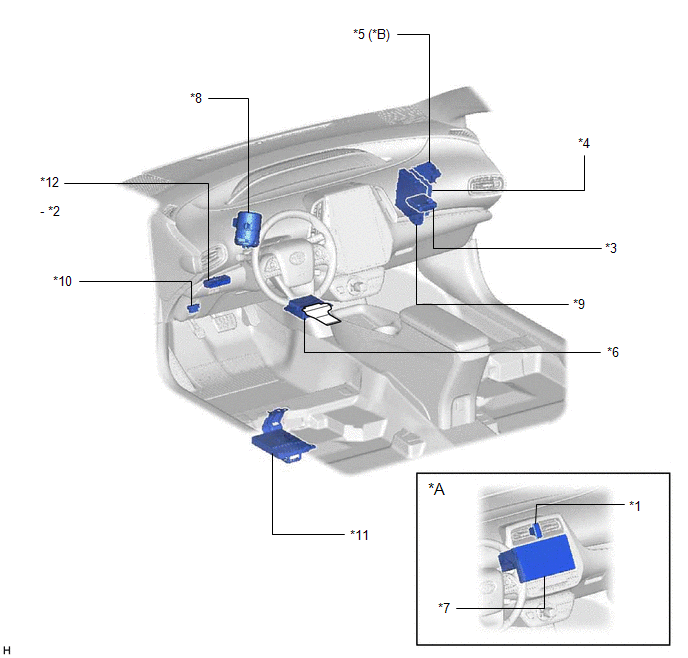

| *A | for 7 Inch Display Navigation Receiver Type | *B | w/ Intelligent Clearance Sonar System |
| *1 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *2 | LIGHT CONTROL RHEOSTAT SWITCH |
| *3 | DRIVING SUPPORT ECU ASSEMBLY | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | CLEARANCE WARNING ECU ASSEMBLY | *6 | AIRBAG ECU ASSEMBLY |
| *7 | NAVIGATION RECEIVER ASSEMBLY | *8 | POWER STEERING ECU ASSEMBLY |
| *9 | HYBRID VEHICLE CONTROL ECU | *10 | DLC3 |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *12 | COMBINATION SWITCH ASSEMBLY |

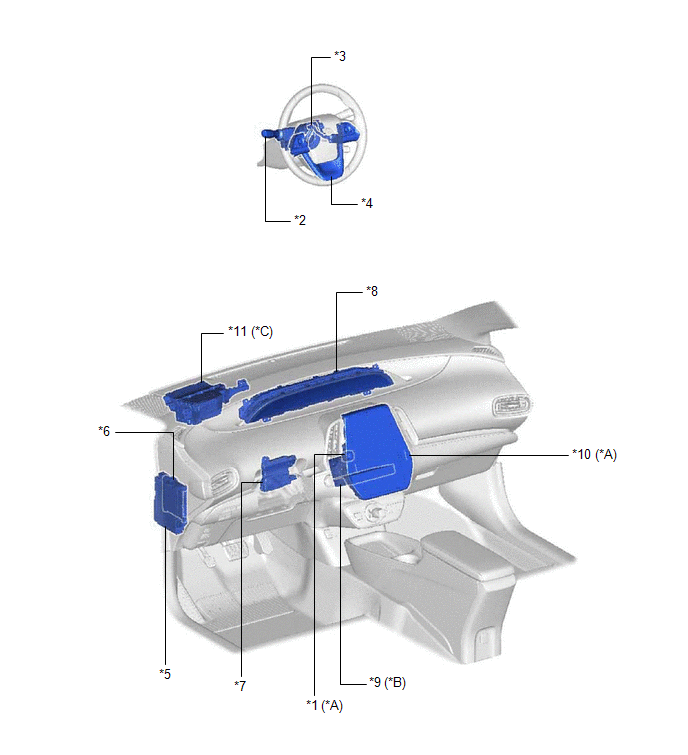

| *A | for 11.6 Inch Display Navigation Receiver Type | *B | w/ Manual (SOS) Switch |
| *C | w/ Headup Display System | - | - |
| *1 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE - HAZ FUSE |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *8 | COMBINATION METER ASSEMBLY - METER CIRCUIT PLATE - NO. 2 METER CIRCUIT PLATE |
| *9 | DCM (TELEMATICS TRANSCEIVER) | *10 | NAVIGATION RECEIVER ASSEMBLY |
| *11 | METER MIRROR SUB-ASSEMBLY - COMBINATION METER MIRROR ECU |
- | - |
