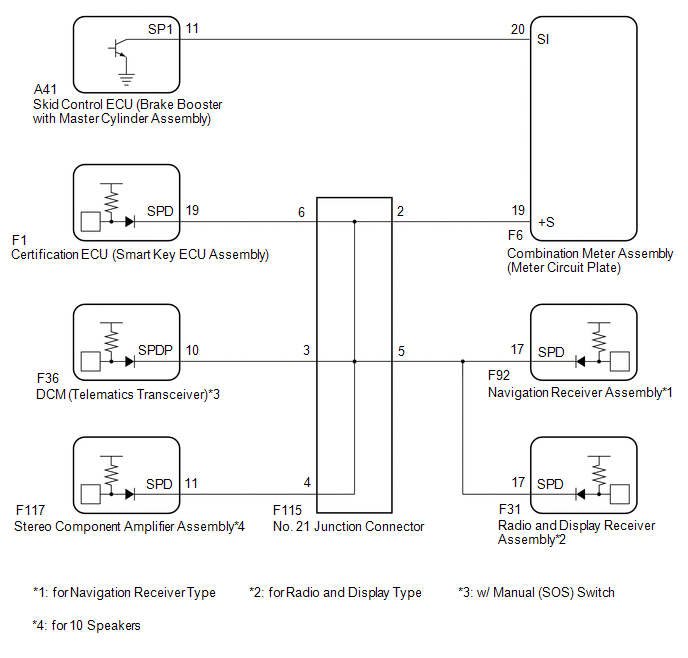

Speed Signal Circuit [12/2018 - 08/2019]: Wiring Diagram

GTY881082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
