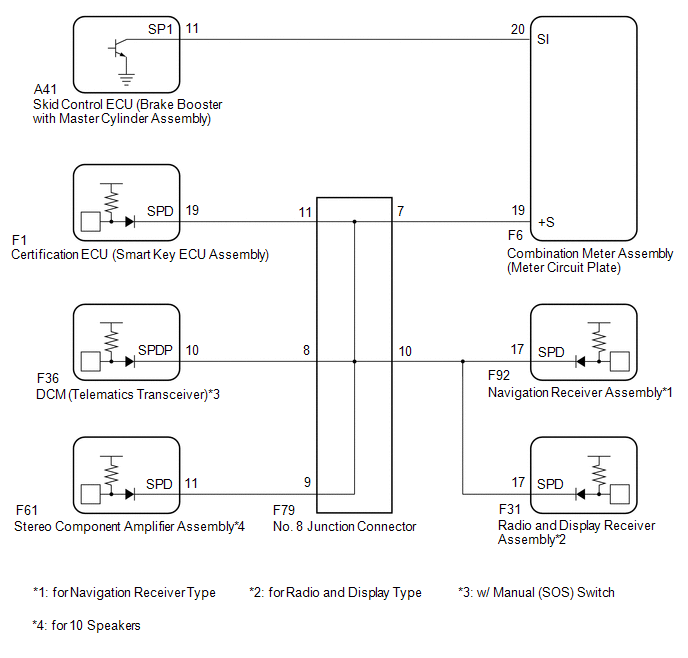

Speed Signal Circuit [11/2015 - 12/2018]: Wiring Diagram

GTY539286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
