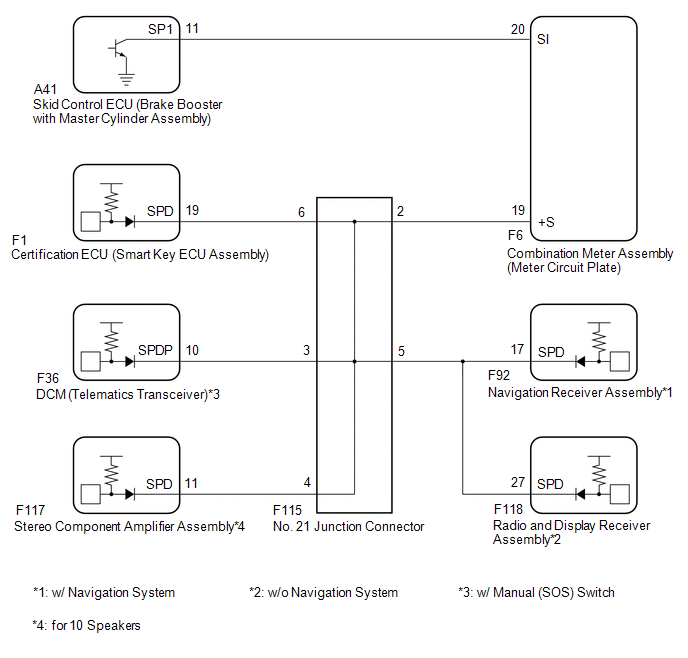

Speed Signal Circuit [08/2019 - 07/2020]: Wiring Diagram

GTY982021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
