DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [12/2018 -]: Wiring Diagram

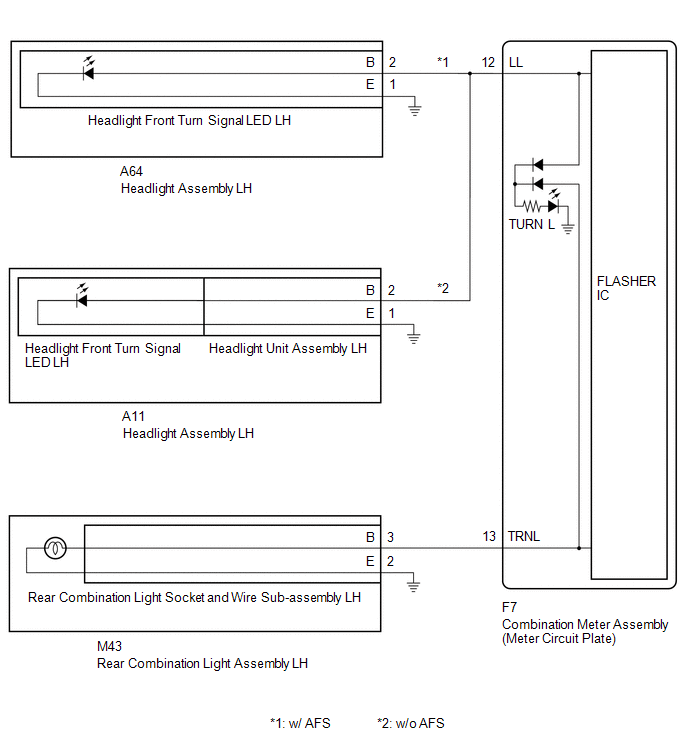

  1. LH SIDE
    GTY895659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

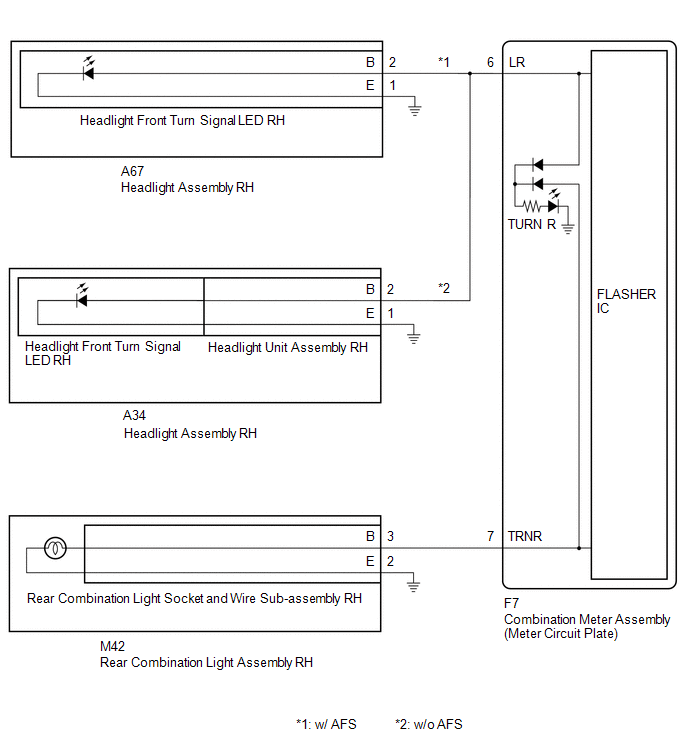

  2. RH SIDE
    GTY895658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
