DTC B1507: Open in Turn Signal Circuit [12/2018 -]: Wiring Diagram

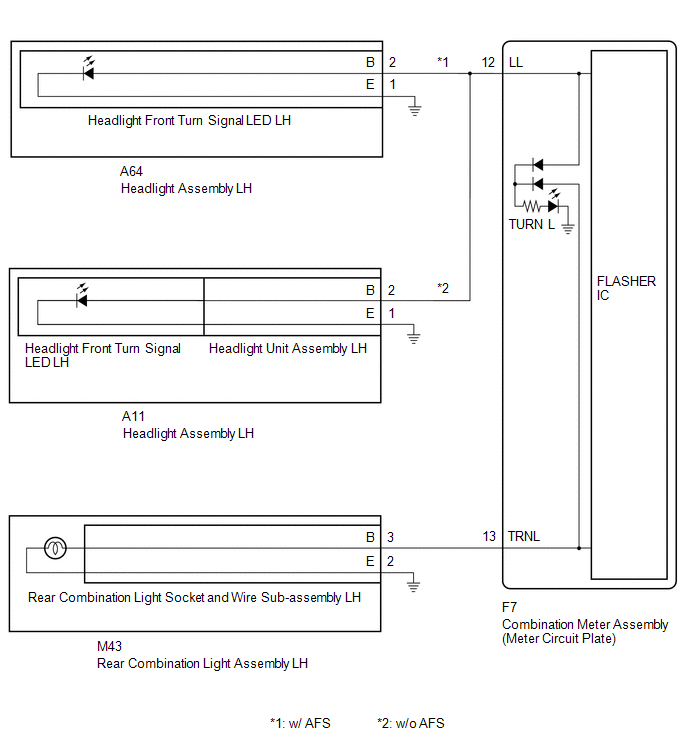

  1. LH SIDE
    GTY895656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

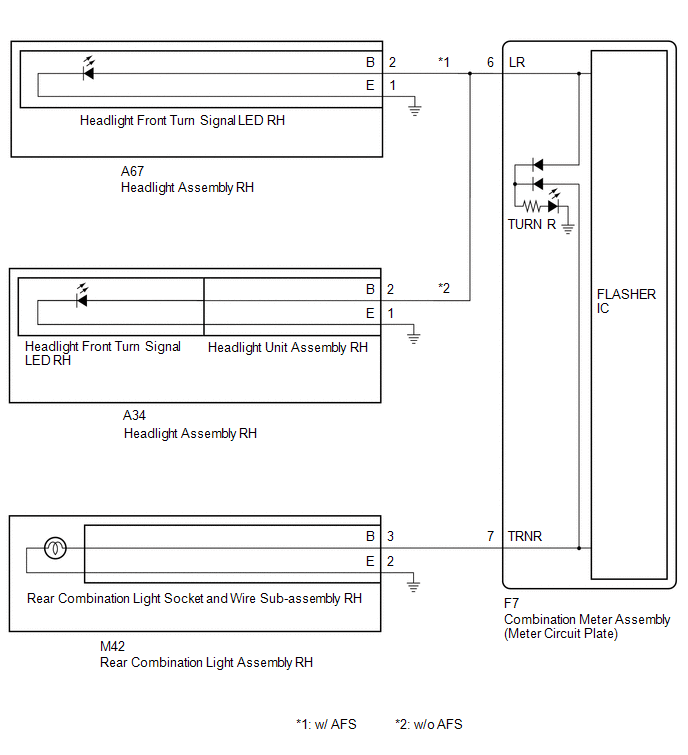

  2. RH SIDE
    GTY895655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
