System Diagram [12/2018 - 08/2019]

WARNING: This page is about a different variant/trim than selected.

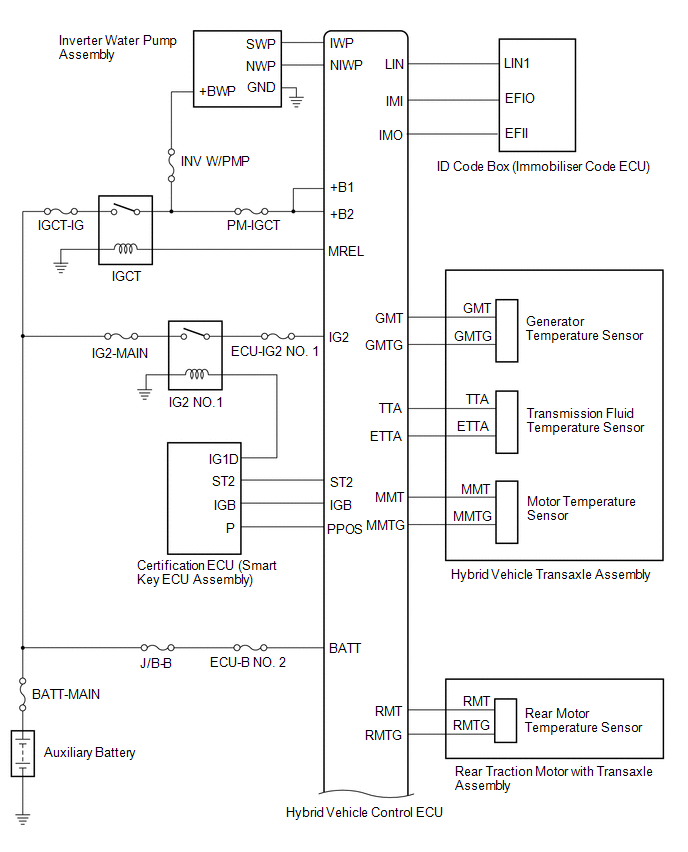

GTY839804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

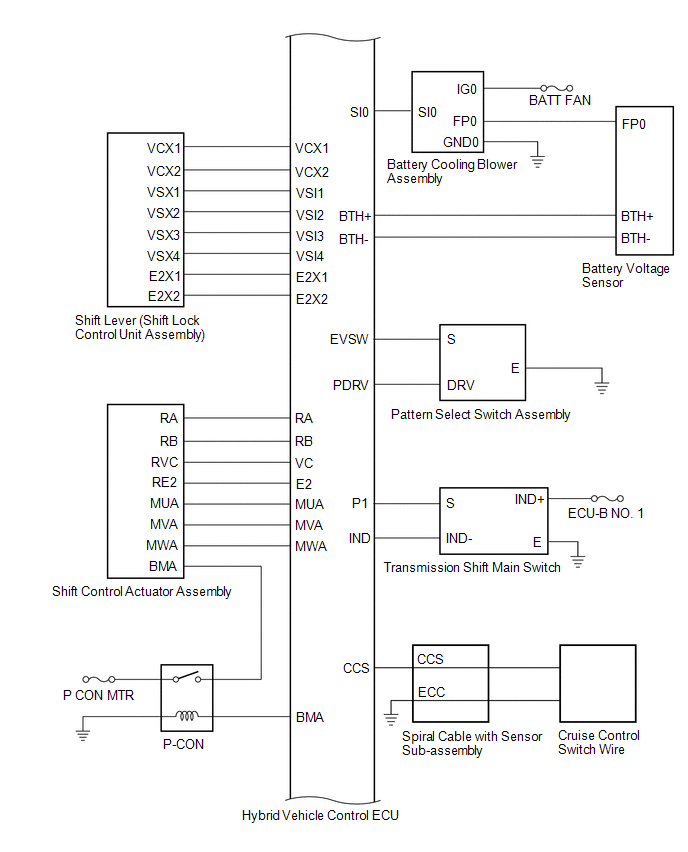

GTY859269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

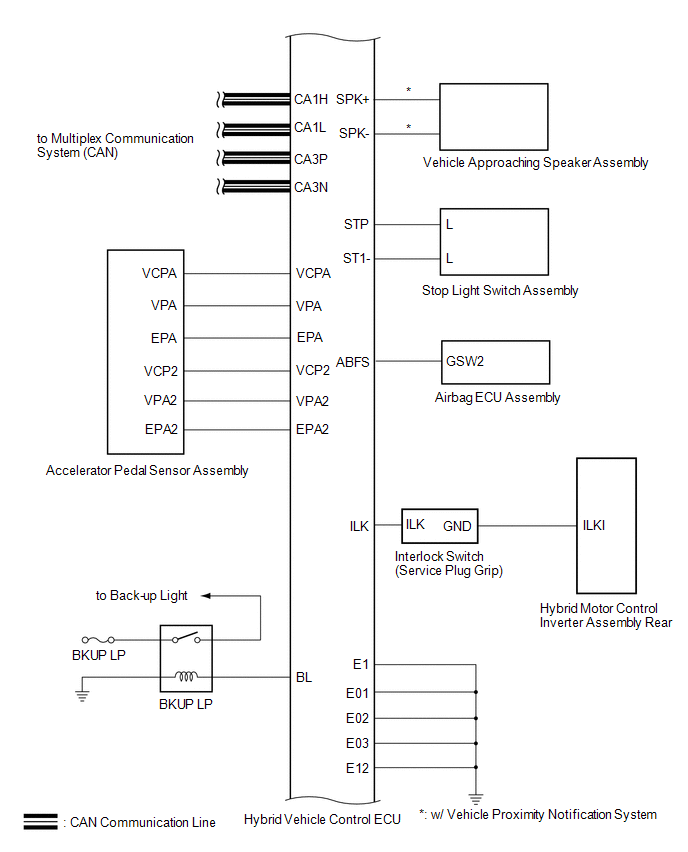

GTY843549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

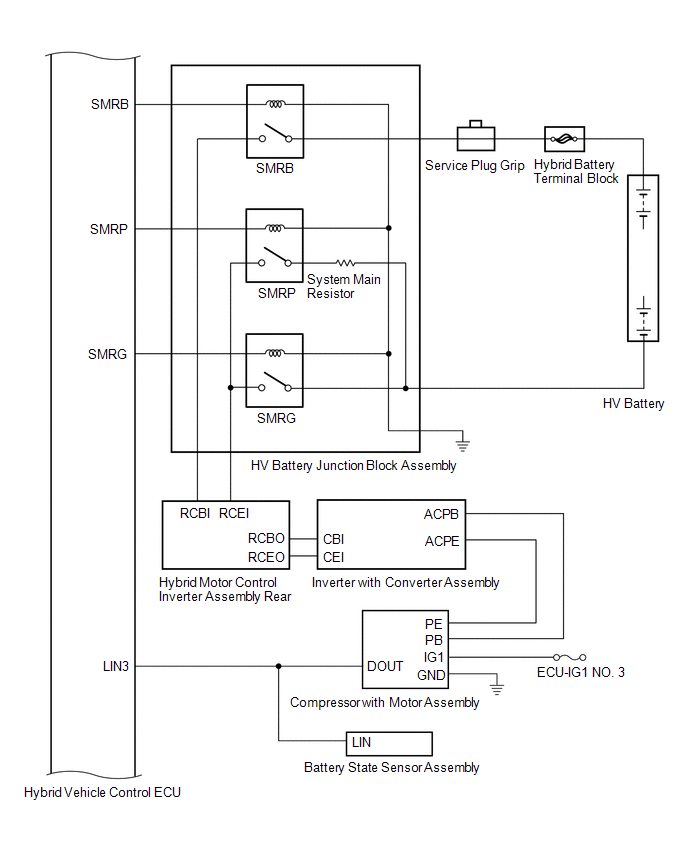

GTY922632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

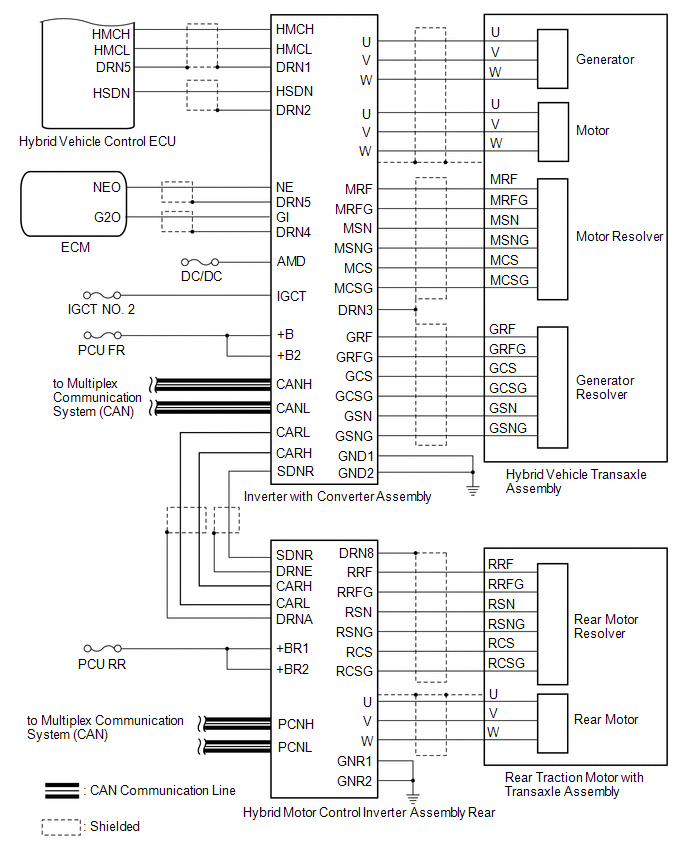

GTY926582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

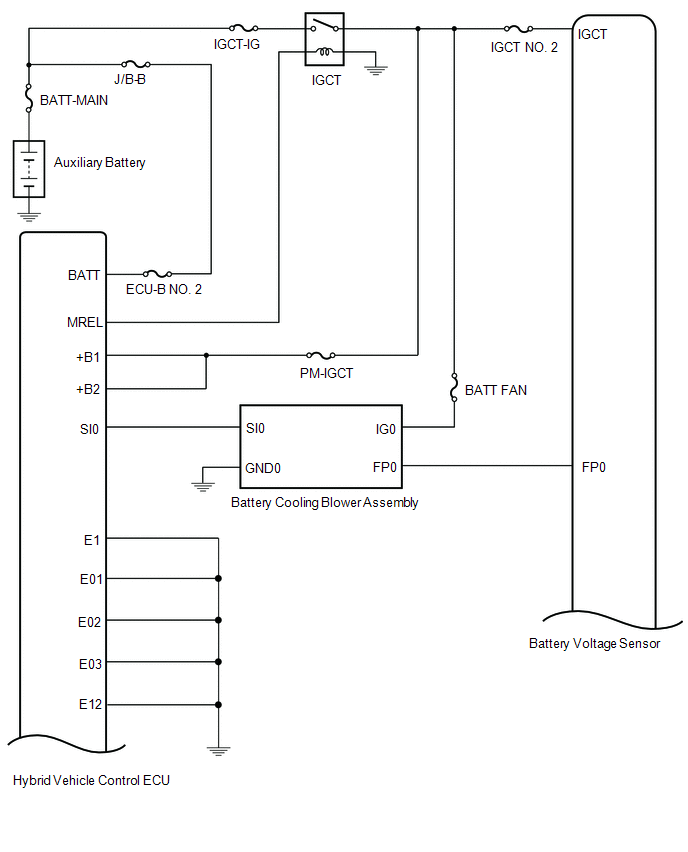

GTY589013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

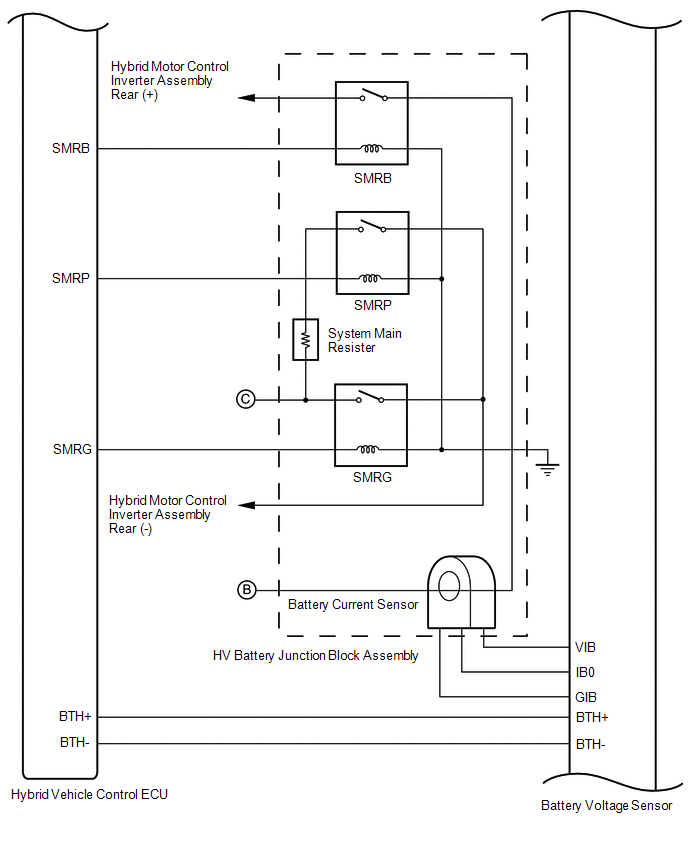

GTY869327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

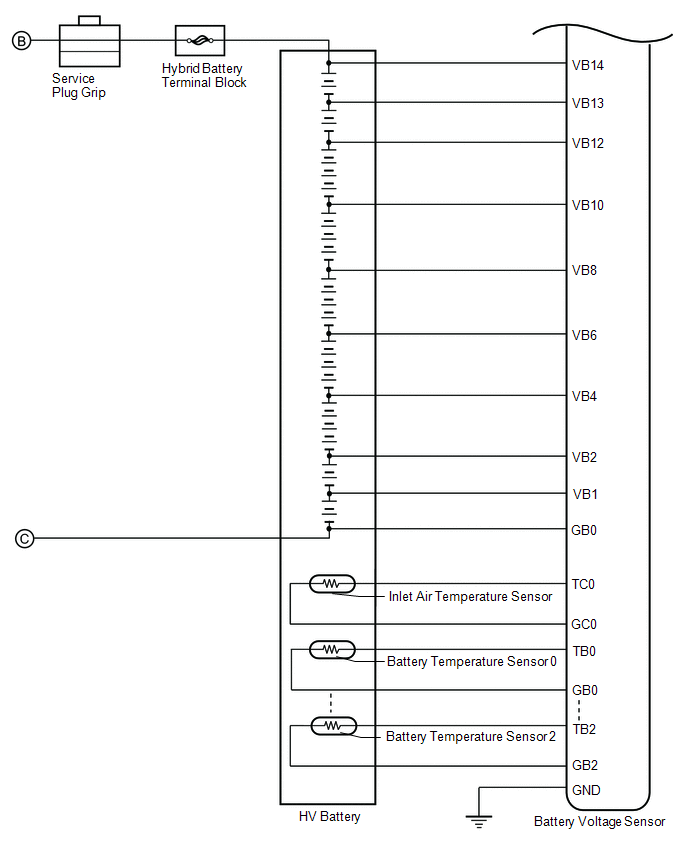

GTY558635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
