Parts Location [12/2018 -]: Illustration
WARNING: This page is about a different variant/trim than selected.

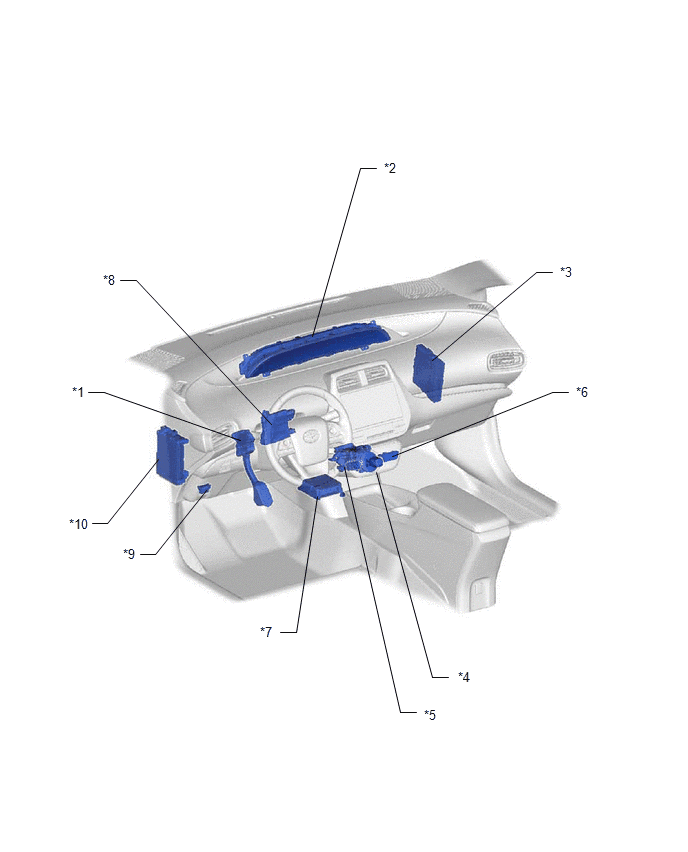

| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | SHIFT LOCK CONTROL UNIT ASSEMBLY |
| *5 | P POSITION SWITCH (TRANSMISSION SHIFT MAIN SWITCH) | *6 | PATTERN SELECT SWITCH ASSEMBLY - EV DRIVE MODE SWITCH - DRIVE MODE SELECT SWITCH |
| *7 | AIRBAG ECU ASSEMBLY | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | DLC3 | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |

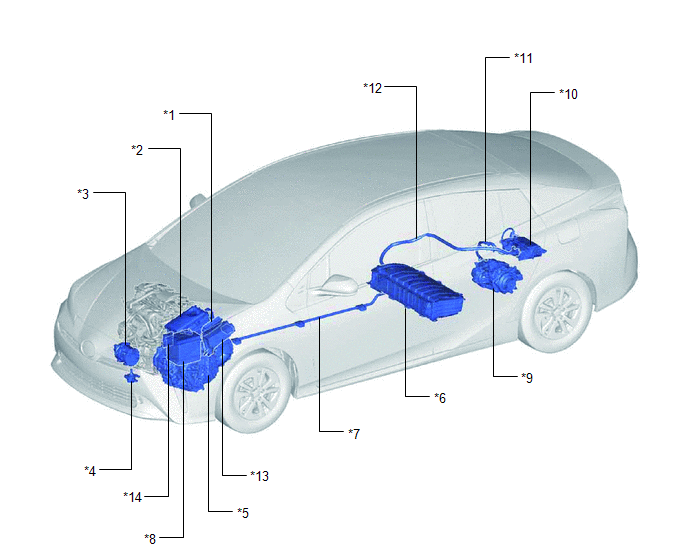

| *1 | ECM | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | COMPRESSOR WITH MOTOR ASSEMBLY | *4 | INVERTER WATER PUMP ASSEMBLY |
| *5 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *6 | HV BATTERY |
| *7 | HV FLOOR UNDER WIRE | *8 | AUXILIARY BATTERY |
| *9 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY | *10 | HYBRID MOTOR CONTROL INVERTER ASSEMBLY REAR |
| *11 | REAR TRACTION MOTOR CABLE | *12 | HV BATTERY PACK WIRE |
| *13 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - NO. 1 INTEGRATION RELAY - P-CON RELAY - IG2-MAIN FUSE - IGCT-IG FUSE - P CON MTR FUSE - J/B-B FUSE - PM-IGCT FUSE - IGCT NO. 2 FUSE - BATT FAN FUSE - PCU FR FUSE - INV W/PMP FUSE - PCU RR FUSE - ECU-IG2 NO. 1 FUSE - IGCT RELAY |
*14 | FUSIBLE LINK BLOCK ASSEMBLY - DC/DC FUSE - BATT-MAIN FUSE |

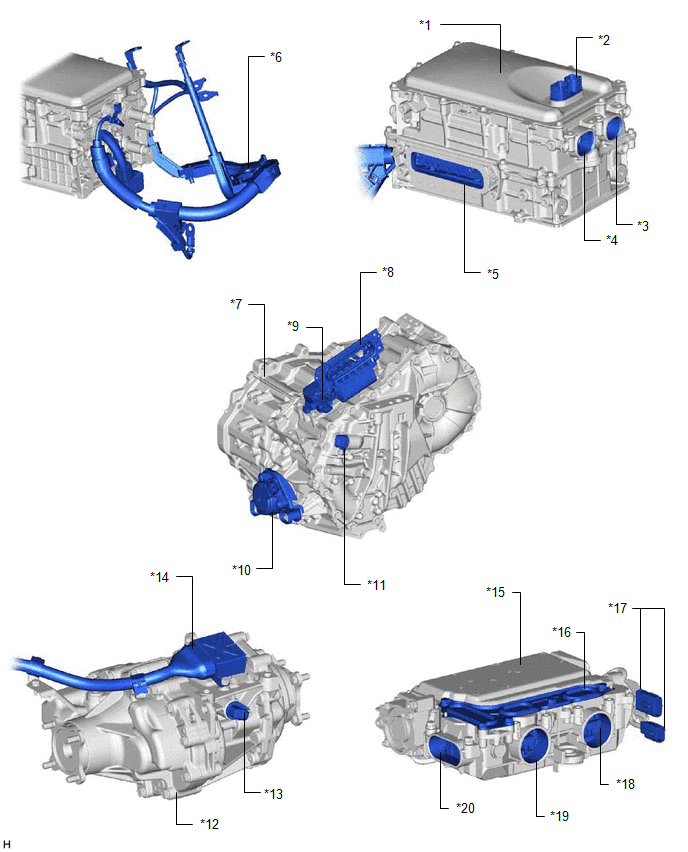

| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | LOW VOLTAGE CONNECTOR |
| *3 | AIR CONDITIONING WIRE CONNECTION | *4 | HV FLOOR UNDER WIRE CONNECTION |
| *5 | MOTOR CABLE CONNECTION | *6 | NO. 3 ENGINE WIRE |
| *7 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *8 | MOTOR CABLE |
| *9 | MOTOR TEMPERATURE SENSOR AND GENERATOR TEMPERATURE SENSOR CONNECTOR | *10 | SHIFT CONTROL ACTUATOR ASSEMBLY |
| *11 | MOTOR RESOLVER, GENERATOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR | *12 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY |
| *13 | REAR MOTOR RESOLVER AND REAR MOTOR TEMPERATURE SENSOR CONNECTOR | *14 | REAR TRACTION MOTOR CABLE |
| *15 | HYBRID MOTOR CONTROL INVERTER ASSEMBLY REAR | *16 | INVERTER TERMINAL COVER |
| *17 | LOW VOLTAGE CONNECTOR | *18 | HV FLOOR UNDER WIRE CONNECTION |
| *19 | HV BATTERY PACK WIRE CONNECTION | *20 | REAR TRACTION MOTOR CABLE CONNECTION |
