Parts Location [11/2015 - 12/2018]: Illustration
WARNING: This page is about a different variant/trim than selected.

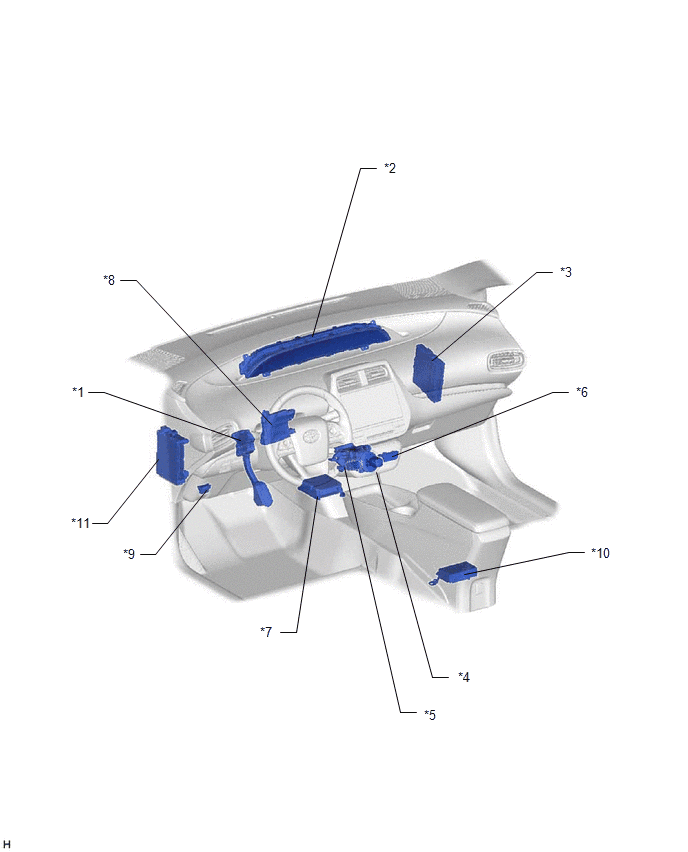

| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | SHIFT LOCK CONTROL UNIT ASSEMBLY |
| *5 | P POSITION SWITCH (TRANSMISSION SHIFT MAIN SWITCH) | *6 | PATTERN SELECT SWITCH ASSEMBLY - EV DRIVE MODE SWITCH - DRIVE MODE SELECT SWITCH |
| *7 | AIRBAG ECU ASSEMBLY | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | DLC3 | *10 | INVERTER BATTERY |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | - | - |

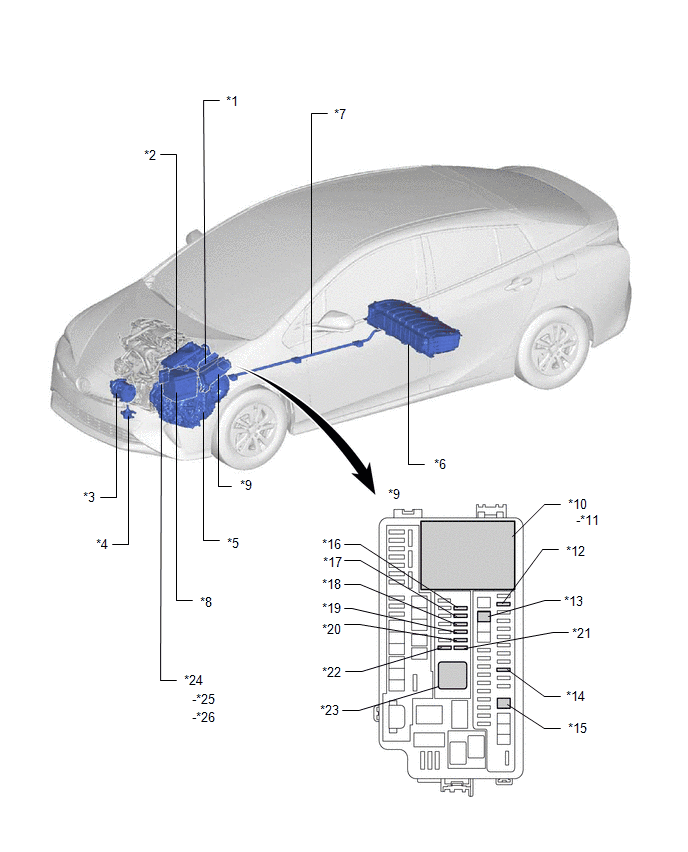

| *1 | ECM | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | COMPRESSOR WITH MOTOR ASSEMBLY | *4 | INVERTER WATER PUMP ASSEMBLY |
| *5 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *6 | HV BATTERY |
| *7 | HV FLOOR UNDER WIRE | *8 | AUXILIARY BATTERY |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *10 | NO. 1 INTEGRATION RELAY |
| *11 | P-CON RELAY | *12 | IG2-MAIN FUSE |
| *13 | IGCT-IG FUSE | *14 | P CON MTR FUSE |
| *15 | J/B-B FUSE | *16 | PM-IGCT FUSE |
| *17 | IGCT NO. 2 FUSE | *18 | BATT FAN FUSE |
| *19 | PCU FR FUSE | *20 | INV W/PMP FUSE |
| *21 | PCU BUB/PCU RR FUSE | *22 | ECU-IG2 NO. 1 FUSE |
| *23 | IGCT RELAY | *24 | FUSIBLE LINK BLOCK ASSEMBLY |
| *25 | DC/DC FUSE | *26 | BATT-MAIN FUSE |

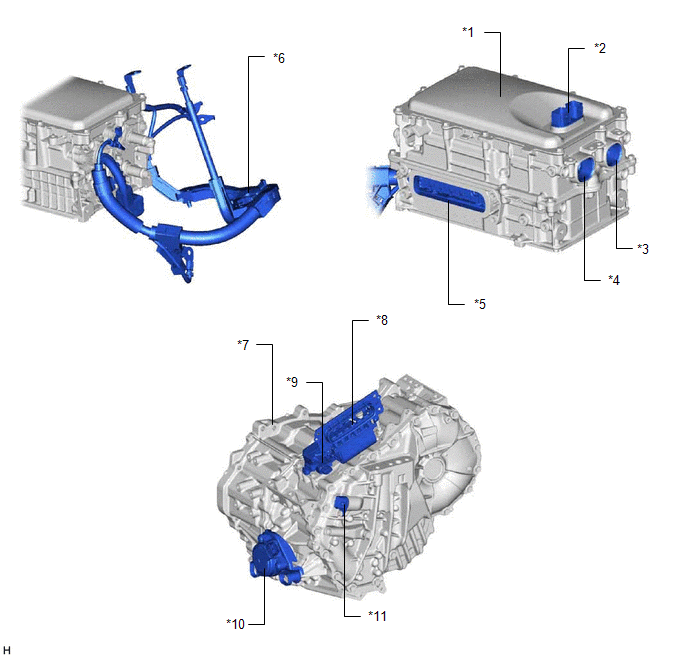

| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | LOW VOLTAGE CONNECTOR |
| *3 | AIR CONDITIONING WIRE CONNECTION | *4 | HV FLOOR UNDER WIRE CONNECTION |
| *5 | MOTOR CABLE CONNECTION | *6 | NO. 3 ENGINE WIRE |
| *7 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *8 | MOTOR CABLE |
| *9 | MOTOR TEMPERATURE SENSOR AND GENERATOR TEMPERATURE SENSOR CONNECTOR | *10 | SHIFT CONTROL ACTUATOR ASSEMBLY |
| *11 | MOTOR RESOLVER, GENERATOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR | - | - |
