Parts Location [12/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

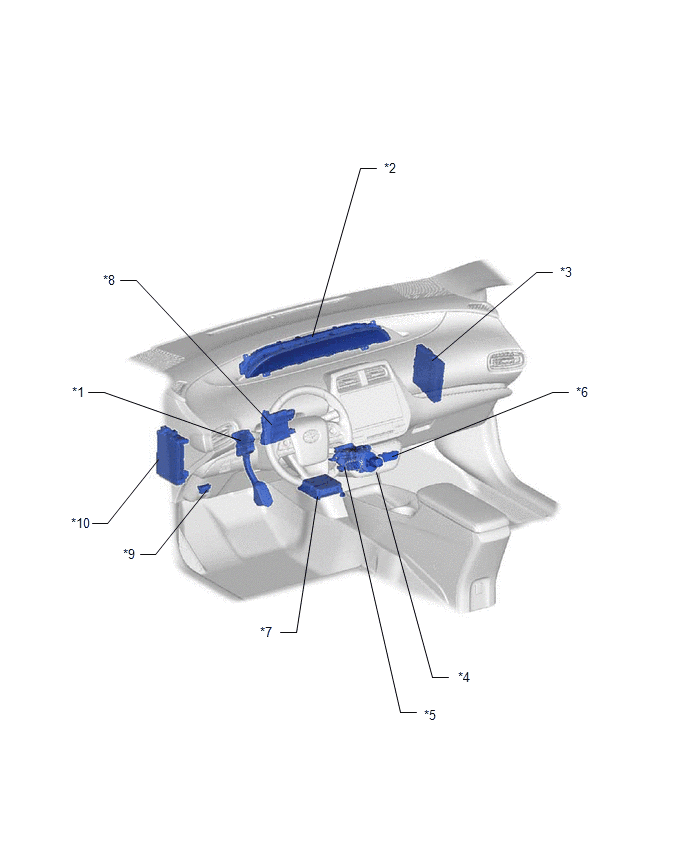

| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | SHIFT LOCK CONTROL UNIT ASSEMBLY |
| *5 | P POSITION SWITCH (TRANSMISSION SHIFT MAIN SWITCH) | *6 | PATTERN SELECT SWITCH ASSEMBLY - EV DRIVE MODE SWITCH - DRIVE MODE SELECT SWITCH |
| *7 | AIRBAG ECU ASSEMBLY | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | DLC3 | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |

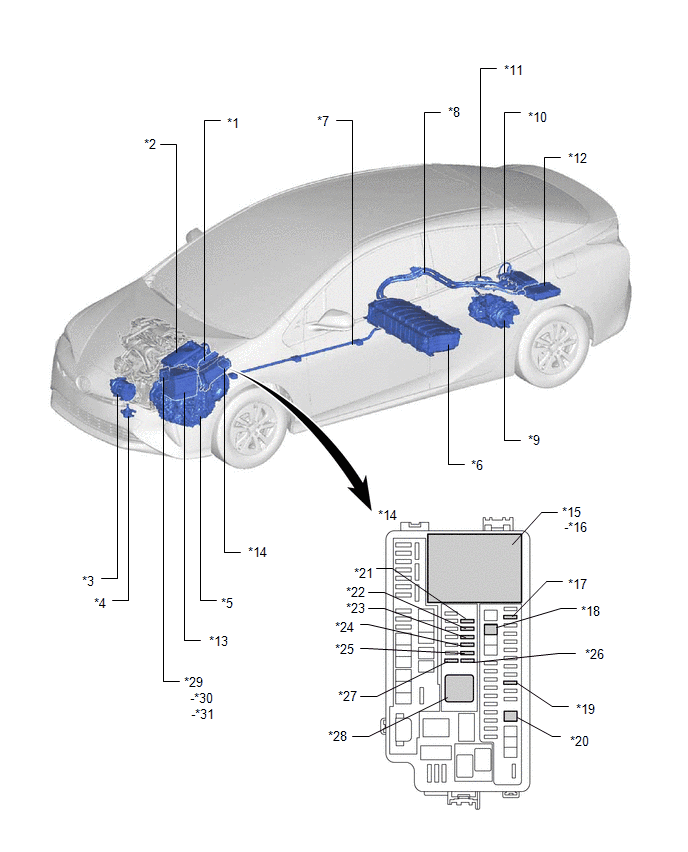

| *1 | ECM | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | COMPRESSOR WITH MOTOR ASSEMBLY | *4 | INVERTER WATER PUMP ASSEMBLY |
| *5 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *6 | HV BATTERY |
| *7 | HV FLOOR UNDER WIRE | *8 | HV BATTERY PACK WIRE |
| *9 | REAR TRACTION MOTOR | *10 | HYBRID MOTOR CONTROL INVERTER ASSEMBLY REAR |
| *11 | REAR TRACTION MOTOR CABLE | *12 | VOLTAGE INVERTER SUB-ASSEMBLY (w/ 1500 W VOLTAGE INVERTER) |
| *13 | AUXILIARY BATTERY | *14 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *15 | NO. 1 INTEGRATION RELAY | *16 | P-CON RELAY |
| *17 | IG2-MAIN FUSE | *18 | IGCT-IG FUSE |
| *19 | P CON MTR FUSE | *20 | J/B-B FUSE |
| *21 | PM-IGCT FUSE | *22 | IGCT NO. 2 FUSE |
| *23 | BATT FAN FUSE | *24 | PCU FR FUSE |
| *25 | INV W/PMP FUSE | *26 | PCU RR FUSE |
| *27 | ECU-IG2 NO. 1 FUSE | *28 | IGCT RELAY |
| *29 | FUSIBLE LINK BLOCK ASSEMBLY | *30 | DC/DC FUSE |
| *31 | BATT-MAIN FUSE | - | - |

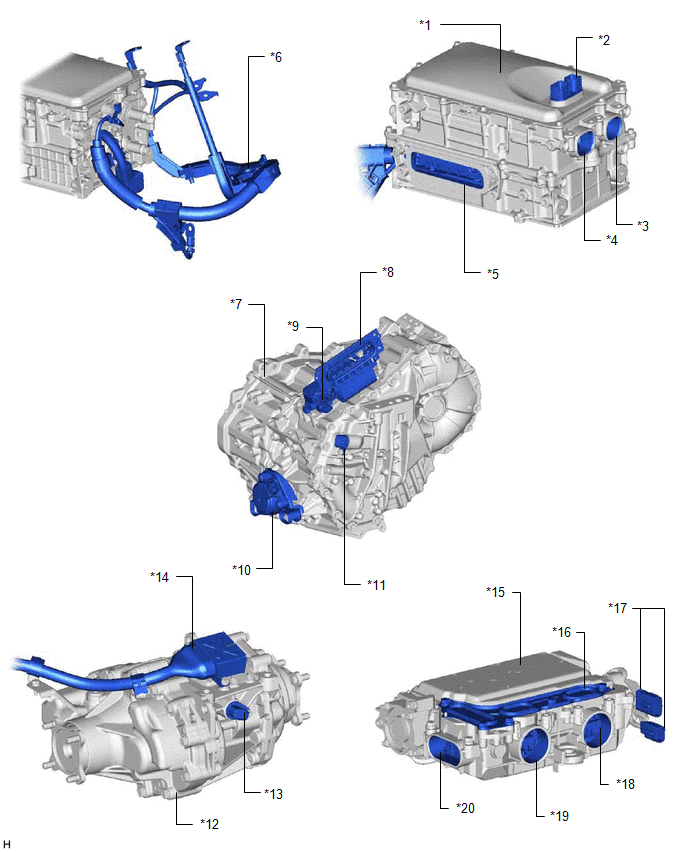

| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | LOW VOLTAGE CONNECTOR |
| *3 | AIR CONDITIONING WIRE CONNECTION | *4 | HV FLOOR UNDER WIRE CONNECTION |
| *5 | MOTOR CABLE CONNECTION | *6 | NO. 3 ENGINE WIRE |
| *7 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *8 | MOTOR CABLE |
| *9 | MOTOR TEMPERATURE SENSOR AND GENERATOR TEMPERATURE SENSOR CONNECTOR | *10 | SHIFT CONTROL ACTUATOR ASSEMBLY |
| *11 | MOTOR RESOLVER, GENERATOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR | *12 | REAR TRACTION MOTOR |
| *13 | REAR MOTOR RESOLVER AND REAR MOTOR TEMPERATURE SENSOR CONNECTOR | *14 | REAR TRACTION MOTOR CABLE |
| *15 | HYBRID MOTOR CONTROL INVERTER ASSEMBLY REAR | *16 | INVERTER TERMINAL COVER |
| *17 | LOW VOLTAGE CONNECTOR | *18 | HV FLOOR UNDER WIRE CONNECTION |
| *19 | HV BATTERY PACK WIRE CONNECTION | *20 | REAR TRACTION MOTOR CABLE CONNECTION |
