Removal [04/2018 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - ]

  2. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 8 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - ]

  3. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 9 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - ]

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - ]

  5. REMOVE REAR UNDER SIDE COVER LH

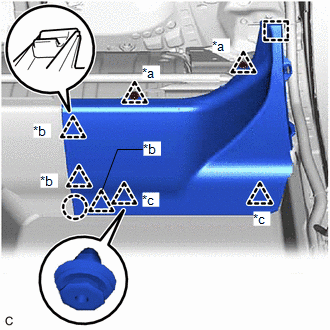

    1. Remove the 2 clips (A).
      GTY752171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b Clip (B)
      *c Clip (C)
    2. Disengage the claw, 3 clips (B), 2 clips (C) and guide to remove the rear under side cover LH.
  6. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE REAR UNDER SIDE COVER RH

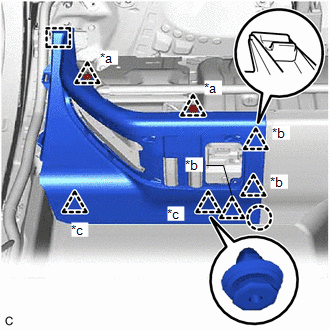

    1. Remove the 2 clips (A).
      GTY745417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b Clip (B)
      *c Clip (C)
    2. Disengage the claw, 3 clips (B), 2 clips (C) and guide to remove the rear under side cover RH.
  8. REMOVE REAR UNDER COVER
    1. Pull the rear under cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 clips.
      GTY754270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the rear under cover in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides to remove it from the rear seat cushion leg sub-assembly.
  9. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY
    1. Remove the 6 bolts and rear seat cushion leg sub-assembly.
      GTY773724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT
    1. Disengage the 2 clamps.
      GTY773477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips and No. 1 hybrid battery intake duct from the battery cooling blower assembly.
      GTY762972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE BATTERY COOLING BLOWER ASSEMBLY
    1. Disconnect the battery cooling blower assembly connector.
      GTY762973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, nut and battery cooling blower assembly from the HV battery.
      NOTE:
      • Be sure not to touch the fan part of the battery cooling blower assembly.
      • Do not lift the battery cooling blower assembly using the wire harness.
      GTY773476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BATTERY COOLING BLOWER BRACKET
    1. Disengage the clamp.
      GTY762955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and battery cooling blower bracket from the battery cooling blower assembly.
