Removal [12/2023 - ]: Procedure

Refer to REMOVAL [12/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: If the shift lock control unit assembly is subjected to any strong impact (such as being dropped), replace it with a new one. Since the shift lock control unit assembly is a non-disassembly type, replace it with a new one if disassembled. When disconnecting a wire harness of any component connected to the supply power of the integrated capacitor (integration control supply) or when removing the integrated capacitor (integration control supply), make sure to wait 5 minutes or more after turning the ignition switch off for self-diagnosis to complete and the voltage of the integrated capacitor (integration control supply) to discharge.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

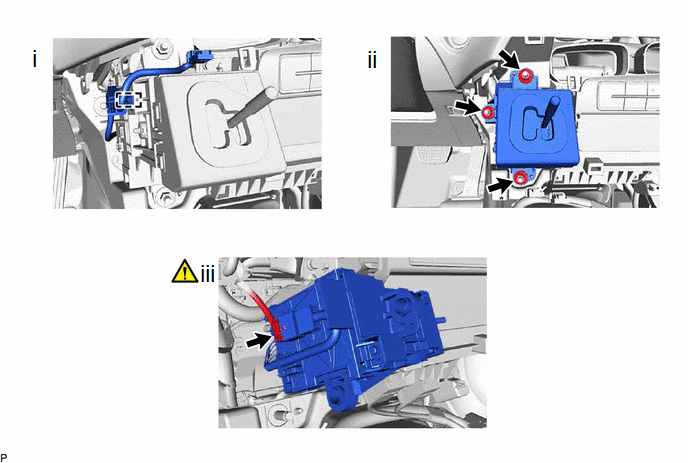

   1. Disconnect the wire harness clamp from the shift lock control unit assembly.
   2. Remove the 3 nuts from the shift lock control unit assembly.
   3. Disconnect the connector while pulling the shift lock control unit assembly towards you and remove the shift lock control unit assembly.
