Installation [11/2020 - ]: Procedure
- INSTALL FRONT LOWER BALL JOINT ASSEMBLY

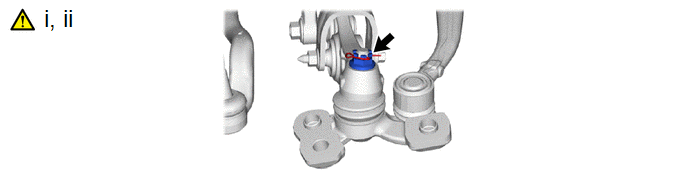

- Install the front lower ball joint assembly LH to the front lower suspension arm assembly LH with the nut.
Torque: 145 N.m (1479 kgf/cm, 107 ft.lbf)
NOTE:Keep the threads and taper free of oil and grease.
- Install a new clip.NOTE:
Further tighten the nut up to 60° if the holes for the clip are not aligned.
- Install the front lower ball joint assembly LH to the front lower suspension arm assembly LH with the nut.
- CONNECT LOWER NO. 2 SUSPENSION ARM ASSEMBLY LH
Refer to PROCEDURE - Step 9 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 9 [12/2022 - ] - INSTALL STEERING KNUCKLE LH
Refer to INSTALLATION [11/2020 - ]
