Removal [11/2020 - 11/2021]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PRECAUTION [11/2020 - ]
  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

    See step  3

  3. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [11/2020 - 11/2021]

  4. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

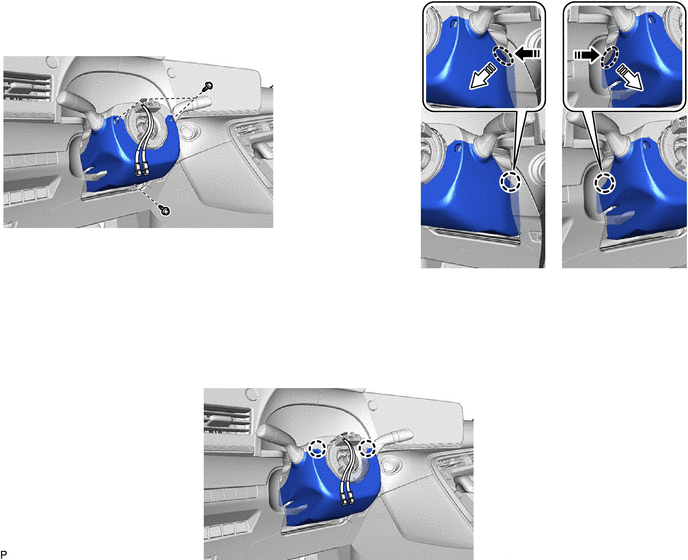

    1. GTY981007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Area Remove in this Direction (1)
      Remove in this Direction (2) Remove in this Direction (3)
      1. Remove the 3 screws.
      2. Press the part in the direction of the arrow shown in the illustration to detach the claw.
      3. Detach the 2 claws and remove the lower steering column cover in the direction of the arrow shown in the illustration.
  5. REMOVE UPPER STEERING COLUMN COVER

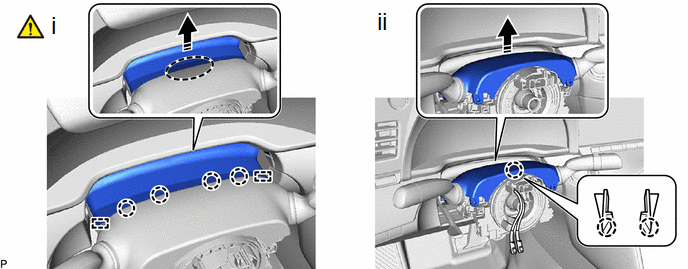

    1. GTY980465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Detach the claws and guides as shown in the illustration.
      2. Disengage the claw to remove the upper steering column cover.
  6. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the power switch on (IG).
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the power switch on (IG).
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

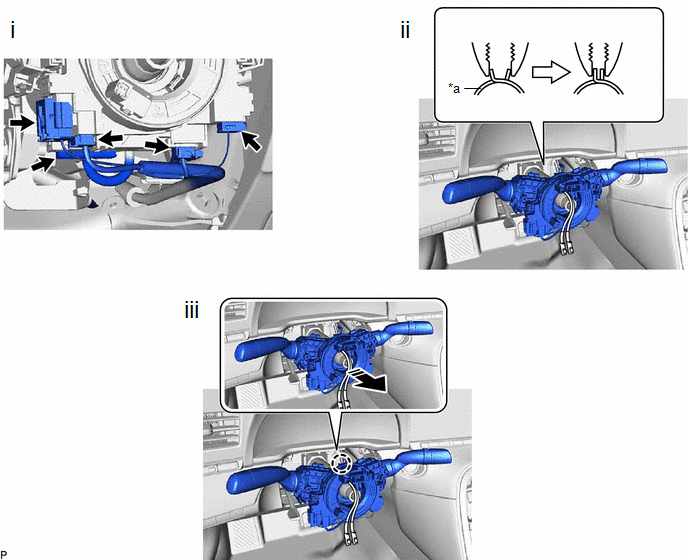

    1. GTY981389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp - -
      Remove in this Direction - -
      1. Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.
      2. Using pliers, support the band clamp while loosened.
      3. Disengage the claw to remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
  7. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [11/2020 - 11/2021]

  8. REMOVE AIR DUCT SUB-ASSEMBLY

    See step  9

  9. REMOVE NO. 2 HEATER TO REGISTER DUCT

    See step  10

  10. REMOVE STEERING COLUMN ASSEMBLY

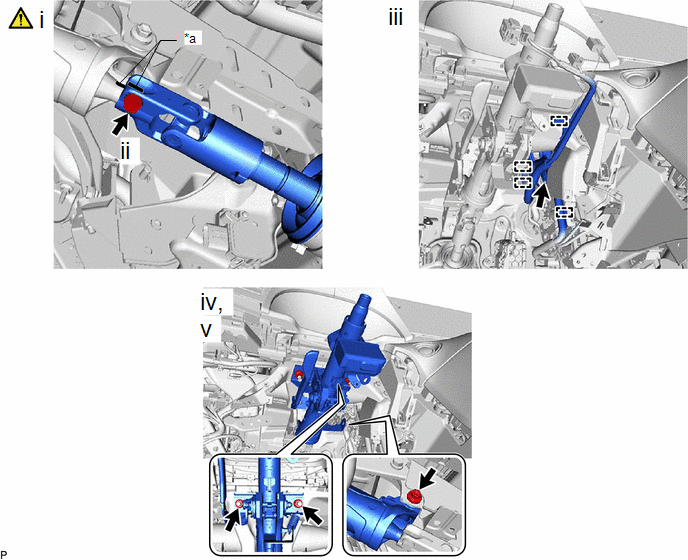

    1. GTY980619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.
      2. Remove the bolt.
      3. Disconnect each connector and disengage each wire harness clamp from the steering column assembly.
      4. Remove the 2 nuts, bolt and steering column assembly.
      5. Remove the steering column assembly from the No. 2 steering intermediate shaft assembly.
  11. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [11/2020 - 12/2023]

  12. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    See step  13
