Removal [12/2023 - ]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [12/2022 - ]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the auxiliary negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2023 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [12/2023 - ]

  4. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  5. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

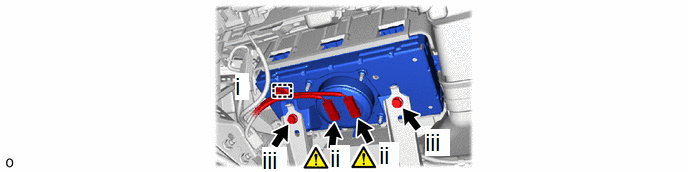

    1. GTY1016430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clamp.
      2. Disconnect the 2 airbag connectors.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector:

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2020 - ]

      3. Remove the 2 bolts.

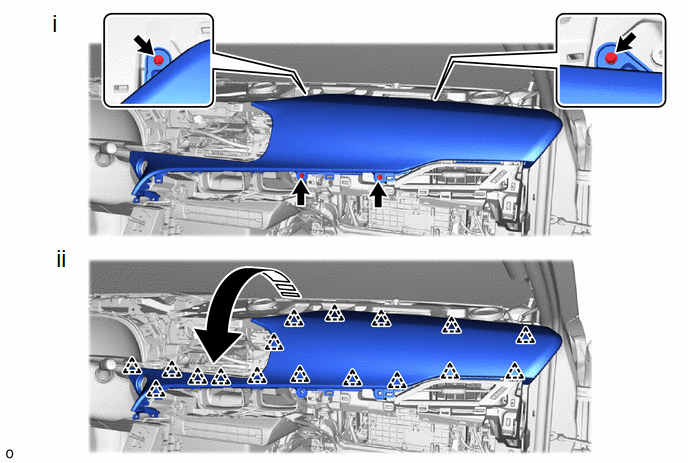

    2. GTY1016492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 4 screws.
      2. Detach the clip and remove the No. 2 instrument panel safety pad sub-assembly as shown in the illustration.
  6. REMOVE INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:
    GTY835723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • When storing the instrument panel passenger without door airbag assembly, keep the airbag deployment side facing upward.
    • If the airbag deploys for any reason, it may cause a serious accident.

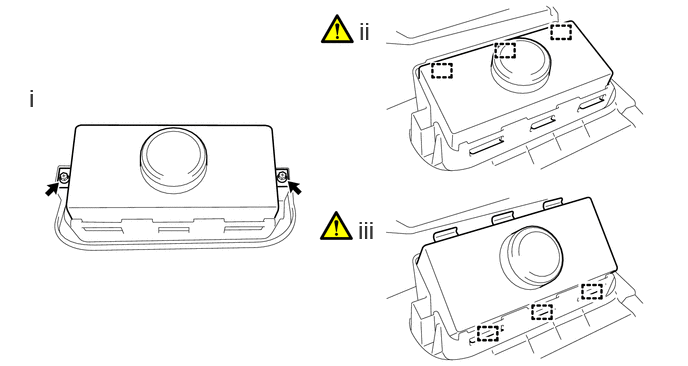

    1. GTY1014959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws.
      2. Lean the instrument panel safety pad sub-assembly and detach the hook.
      3. Detach the hook to remove the instrument panel passenger without door airbag assembly from the No. 2 instrument panel safety pad sub-assembly.
