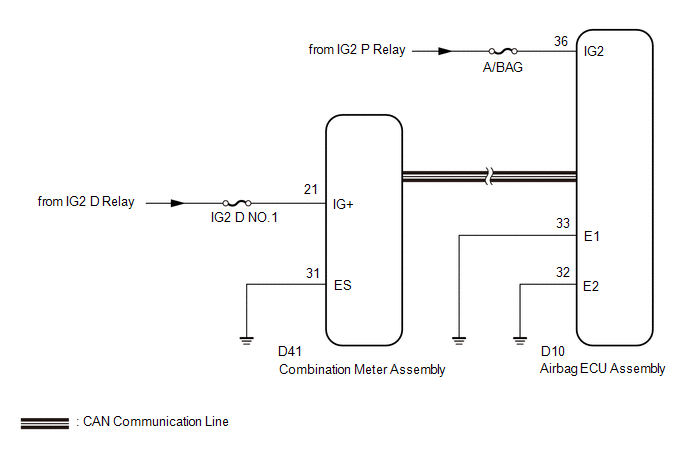

SRS Warning Light does not Come ON [11/2020 - 11/2021]: Wiring Diagram

GTY973988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
