SRS Warning Light Remains ON [12/2023 - ]: Wiring Diagram

w/ Front LiDAR Sensor:

GTY1163043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

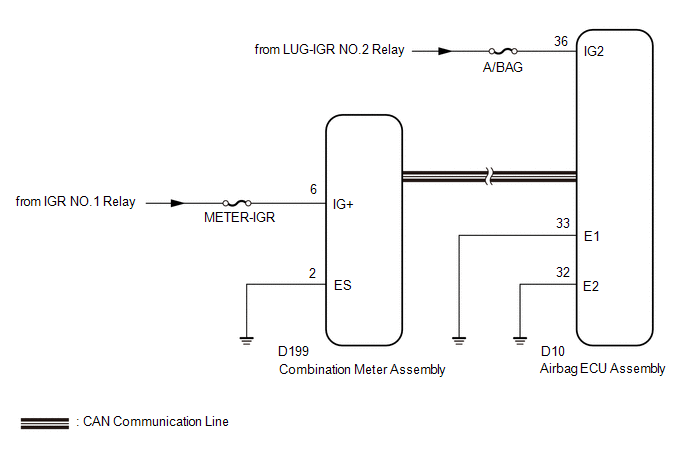

w/o Front LiDAR Sensor:

GTY1209665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
