SRS Warning Light Remains ON [11/2021 - 12/2022]: Wiring Diagram

w/o Advanced Drive:

GTY973988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

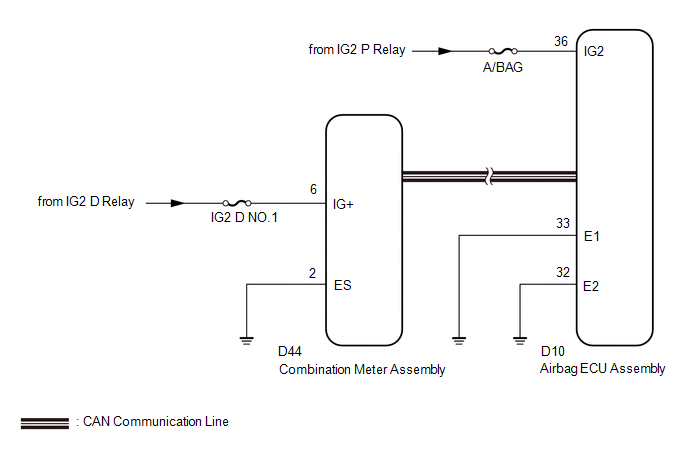

w/ Advanced Drive:

GTY1163043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
