DTC B00B5-12: Driver Seat Track Position Restraints Sensor Circuit Short to Battery [11/2020 - 12/2022]: Procedure

  1. CHECK CONNECTION OF CONNECTORS

    Pre-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    • Check that the connectors are properly connected to the airbag ECU assembly and front seat adjuster assembly LH (seat position airbag sensor).

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK CONNECTORS

    Pre-procedure1

    • Disconnect the airbag ECU assembly connector.
      GTY993206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Adjuster Assembly LH (Seat Position Airbag Sensor)
      *2 Airbag ECU Assembly
      *3 Front Seat Inner Belt Assembly LH
      *4 Wire Harness
    • Disconnect the front seat adjuster assembly LH (seat position airbag sensor) connector.
    • Check that the connectors (on the airbag ECU assembly side and front seat adjuster assembly LH (seat position airbag sensor) side) are not damaged.

      OK

      The terminals of the connectors are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

    Pre-procedure1

    • Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

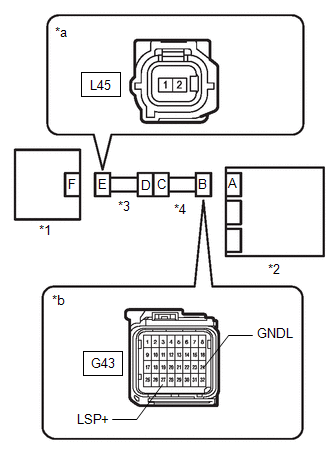

      GTY991777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Adjuster Assembly LH (Seat Position Airbag Sensor)
      *2 Airbag ECU Assembly
      *3 Front Seat Inner Belt Assembly LH
      *4 Wire Harness
      *a Front view of wire harness connector
      (to Front Seat Adjuster Assembly LH (Seat Position Airbag Sensor))
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition Result
      L45-2 - Body ground Ignition switch ON Below 1 V V
      L45-1 - Body ground Ignition switch ON Below 1 V V

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CLEAR DTC
    1. Reconnect the airbag ECU assembly connector.
      GTY991973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Adjuster Assembly LH (Seat Position Airbag Sensor)
      *2 Airbag ECU Assembly
      *3 Front Seat Inner Belt Assembly LH
      *4 Wire Harness
    2. Reconnect the front seat adjuster assembly LH (seat position airbag sensor) connector.
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the ignition switch to ON, and wait for at least 60 seconds.
    5. Clear the DTCs stored in memory.

      Body Electrical > SRS Airbag > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  5

  5. CHECK DTC

    Pre-procedure1

    • Turn the ignition switch off.
    • Turn the ignition switch to ON, and wait for at least 60 seconds.
    • Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result  Proceed to
      B00B5-12 is output A
      B00B5-13 is output B

    Post-procedure1

    • None

    Result:

    A

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]

    Result:

    B

    See step  6

  6. CHECK CONNECTORS

    Pre-procedure1

    • Turn the ignition switch off.
      GTY992644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Adjuster Assembly LH (Seat Position Airbag Sensor)
      *2 Airbag ECU Assembly
      *3 Front Seat Inner Belt Assembly LH
      *4 Wire Harness
    • Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    • Disconnect the airbag ECU assembly connector.
    • Disconnect the front seat adjuster assembly LH (seat position airbag sensor) connector.
    • Check that the connectors (on the front seat inner belt assembly LH side and wire harness side) are not damaged.

      OK

      The terminals of the connectors are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

    Pre-procedure1

    • Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

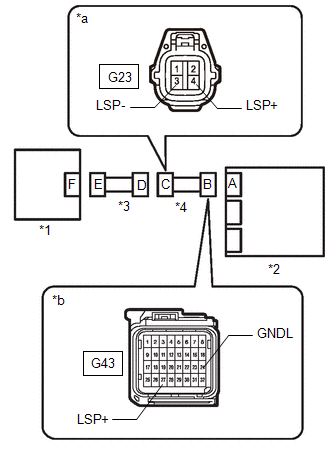

      GTY992941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Adjuster Assembly LH (Seat Position Airbag Sensor)
      *2 Airbag ECU Assembly
      *3 Front Seat Inner Belt Assembly LH
      *4 Wire Harness
      *a Front view of wire harness connector
      (to Front Seat Inner Belt Assembly LH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition Result
      G23-4 (LSP+) - Body ground Ignition switch ON Below 1 V V
      G23-3 (LSP-) - Body ground Ignition switch ON Below 1 V V

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

    Result:

    OK

    REPLACE FRONT SEAT ADJUSTER ASSEMBLY LH. Refer to  DISASSEMBLY [11/2020 - 12/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
