DTC U1150-87: Lost Communication with Hybrid Powertrain Control Module (Hybrid/EV Battery Local Bus) Missing Message [11/2020 - 12/2022]: Procedure
- CHECK DTC OUTPUT (EV)
Pre-procedure1
- None.
- Check for DTCs.
Powertrain > EV > Trouble Codes
Result
Result Proceed to DTCs are not output A DTCs are output B
Post-procedure1
- Turn the ignition switch off.
Result:
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2020 - 12/2022]
Result:
A
See step 2
- CHECK EV CONTROL ECU (VOLTAGE)
Pre-procedure1
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
*a Component with harness connected
(EV Control ECU)Standard Voltage
Tester Connection Condition Specified Condition Result A17-1 (+B1) - Body ground Ignition switch ON 11 to 14 V V A8-7 (+B2) - Body ground Ignition switch ON 11 to 14 V V Result
Proceed to OK NG
Post-procedure1
- Turn the ignition switch off.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY ECU ASSEMBLY POWER SOURCE CIRCUIT)
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (EV CONTROL ECU - NO. 2 EV BATTERY PACK WIRE CONNECTOR) WARNING:
Be sure to wear insulated gloves and protective goggles.
Pre-procedure1
- Check that the service plug grip and FC converter power outlet cable are not installed.NOTE:
After removing the service plug grip and FC converter power outlet cable, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Remove the center No. 2 floor to brace extension.
HINT:
Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]

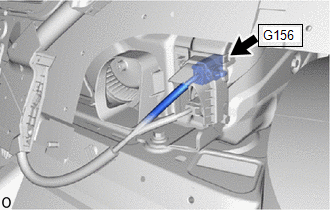

- Disconnect the G156 No. 2 EV battery pack wire connector.NOTE:
- Before disconnecting the connector, check that it is not loose or disconnected.
- Check the terminals of the connector for deformation and corrosion.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(No. 2 EV Battery Pack Wire Connector)Standard Resistance
Tester Connection Condition Specified Condition Result G156-4 (CA1H) - G156-13 (CA1L) Ignition switch off 108 to 132 Ω Ω Result
Proceed to OK NG
Post-procedure1
- Reconnect the G156 No. 2 EV battery pack wire connector.
- Install the center No. 2 floor to brace extension.
Result:
NG
See step 5
Result:
OK
See step 4
- Check that the service plug grip and FC converter power outlet cable are not installed.
- CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - NO. 2 EV BATTERY PACK WIRE CONNECTOR) WARNING:
Be sure to wear insulated gloves and protective goggles.
Pre-procedure1
- Check that the service plug grip and FC converter power outlet cable are not installed.NOTE:
After removing the service plug grip and FC converter power outlet cable, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Remove the upper No. 1 EV battery cover sub-assembly.
HINT:
Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]

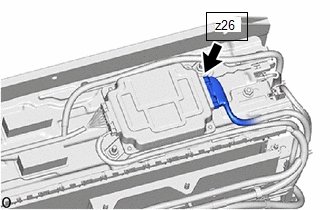

- Disconnect the z26 battery ECU assembly connector.NOTE:
- Before disconnecting the connector, check that it is not loose or disconnected.
- Check the terminals of the connector for deformation and corrosion.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

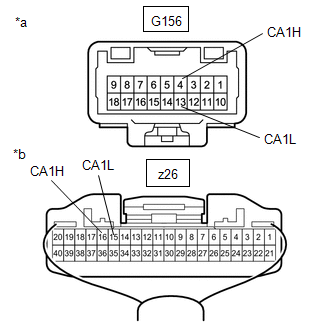

Tester Connection Condition Specified Condition Result z26-16 (CA1H) - G156-4 (CA1H) Always Below 1 Ω Ω z26-15 (CA1L) - G156-13 (CA1L) Always Below 1 Ω Ω z26-16 (CA1H) or G156-4 (CA1H) - Body ground and other terminals Always 10 kΩ or higher kΩ z26-15 (CA1L) or G156-13 (CA1L) - Body ground and other terminals Always 10 kΩ or higher kΩ *a Front view of wire harness connector
(No. 2 EV Battery Pack Wire Connector)*b Rear view of wire harness connector
(to Battery ECU Assembly)Result
Proceed to OK NG
Post-procedure1
- Reconnect the z26 battery ECU assembly connector.
- Install the upper No. 1 EV battery cover sub-assembly.
Result:
OK
REPLACE BATTERY ECU ASSEMBLY. Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Check that the service plug grip and FC converter power outlet cable are not installed.
- CHECK HARNESS AND CONNECTOR (EV CONTROL ECU - NO. 2 EV BATTERY PACK WIRE CONNECTOR) WARNING:
Be sure to wear insulated gloves and protective goggles.
Pre-procedure1
- Check that the service plug grip and FC converter power outlet cable are not installed.NOTE:
After removing the service plug grip and FC converter power outlet cable, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the A8 EV control ECU connector.NOTE:
- Before disconnecting the connector, check that it is not loose or disconnected.
- Check that each connector between the EV control ECU and battery ECU assembly is not loose or disconnected.
- Disconnect the D92 shift control ECU connector.NOTE:
Before disconnecting the connector, check that it is not loose or disconnected.
- Remove the center No. 2 floor to brace extension.
HINT:
Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]
- Disconnect the G156 No. 2 EV battery pack wire connector.NOTE:
- Before disconnecting the connector, check that it is not loose or disconnected.
- Check the terminals of the connector for deformation and corrosion.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

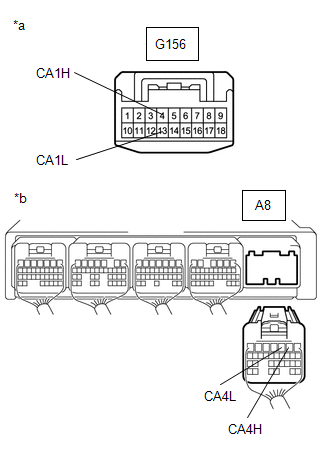

Tester Connection Condition Specified Condition Result G156-4 (CA1H) - A8-2 (CA4H) Ignition switch off Below 1 Ω Ω G156-13 (CA1L) - A8-3 (CA4L) Ignition switch off Below 1 Ω Ω G156-4 (CA1H) or A8-2 (CA4H) - Other terminals and body ground Ignition switch off 10 kΩ or higher kΩ G156-13 (CA1L) or A8-3 (CA4L) - Other terminals and body ground Ignition switch off 10 kΩ or higher kΩ *a Front view of wire harness connector
(No. 2 EV Battery Pack Wire Connector)*b Rear view of wire harness connector
(to EV Control ECU)NOTE:Make sure that each connector between the battery ECU assembly and EV control ECU is not loose or disconnected and its terminals are not deformed or corroded.
Result
Proceed to OK NG
Post-procedure1
- Reconnect the G156 No. 2 EV battery pack wire connector.
- Install the center No. 2 floor to brace extension.
- Reconnect the D92 shift control ECU connector.
- Reconnect the A8 EV control ECU connector.
Result:
OK
REPLACE EV CONTROL ECU. Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Check that the service plug grip and FC converter power outlet cable are not installed.
