Installation [11/2020 - 12/2022]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING: Be sure to wear insulated gloves. NOTE: Before installing the service plug grip, check that no parts or tools remain and that the high voltage terminals and connectors are connected securely.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

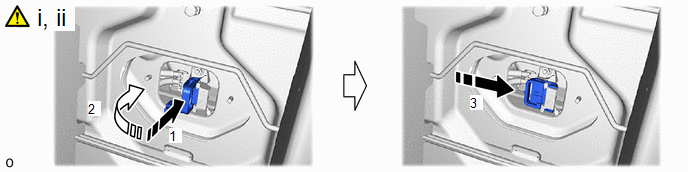

   1. While wearing insulated gloves, and temporarily install the service plug grip as indicated by the arrow (1) shown in the illustration.
   2. Rotate the handle of the service plug grip 90° toward the HV battery and slide it in the direction indicated by the arrow (3) shown in the illustration until a click sound is heard to install the service plug grip.

Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

Refer to INSTALLATION [11/2020 - 12/2022]

Refer to WORK PROCEDURE [11/2020 - 12/2022]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]
