Removal [11/2020 - ]: Procedure

  1. REMOVE FRONT WIPER MOTOR AND LINK

    Refer to REMOVAL [11/2020 - ]

  2. REMOVE WATER PUMP ASSEMBLY WITH MOTOR

    Refer to REMOVAL [11/2020 - ]

  3. DISCONNECT WATER HOSE

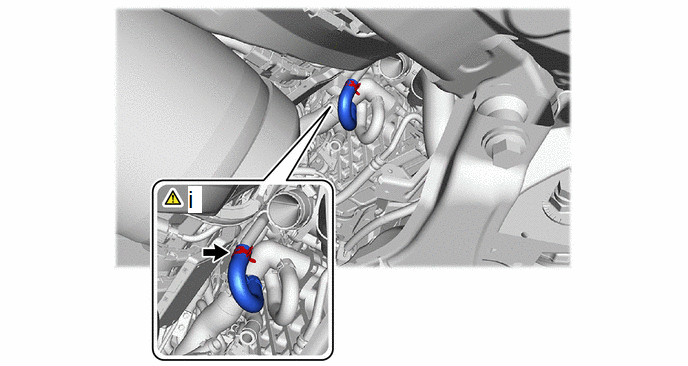

    1. GTY991038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to disconnect the water hose.
        NOTE:
        • Do not apply excessive force to the water hose.
        • Prepare a drain pan or cloth in case the coolant leaks.
  4. DISCONNECT HEATER ACCESSORY ASSEMBLY

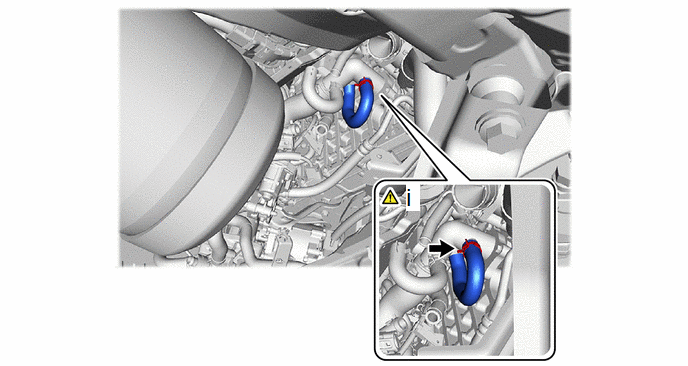

    1. GTY991056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to disconnect the heater accessory assembly.
        NOTE:
        • Do not apply excessive force to the heater accessory assembly.
        • Prepare a drain pan or cloth in case the coolant leaks.
  5. DISCONNECT NO. 1 BATTERY PACK WIRE

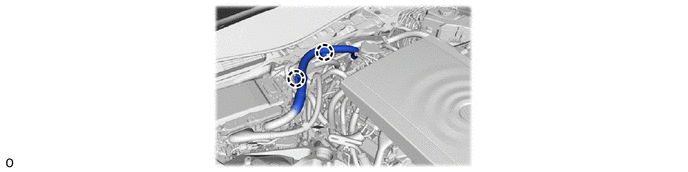

    1. GTY992723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT FLOOR UNDER WIRE

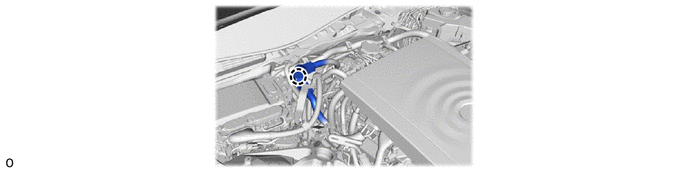

    1. GTY992721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)

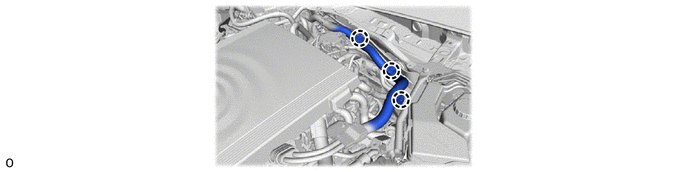

    1. GTY992722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

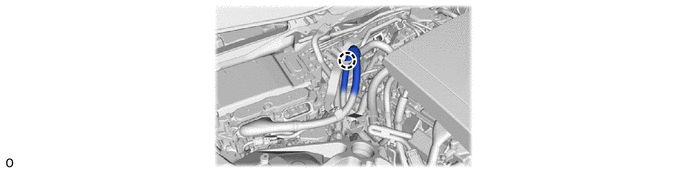

  8. DISCONNECT FC AIR COMPRESSOR MOTOR CABLE ASSEMBLY
    1. GTY992718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT STACK WIRE

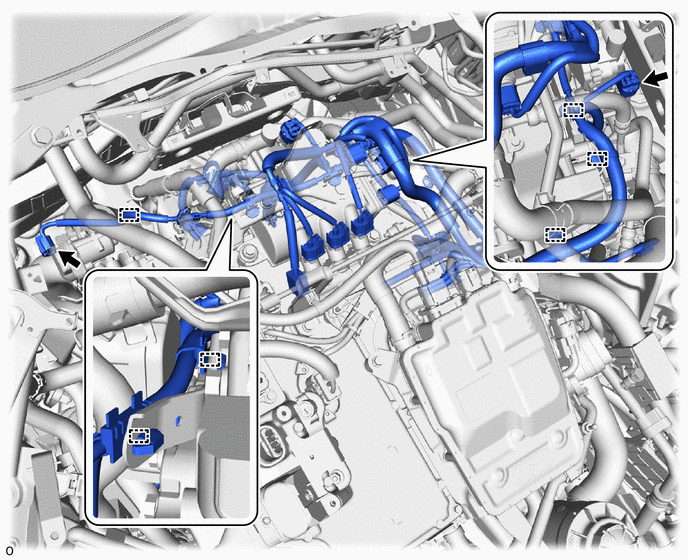

    1. GTY992720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

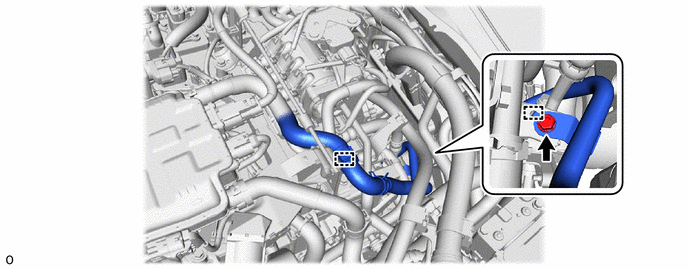

  10. DISCONNECT WATER HOSE SUB-ASSEMBLY B
    1. GTY990828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT WATER HOSE SUB-ASSEMBLY D

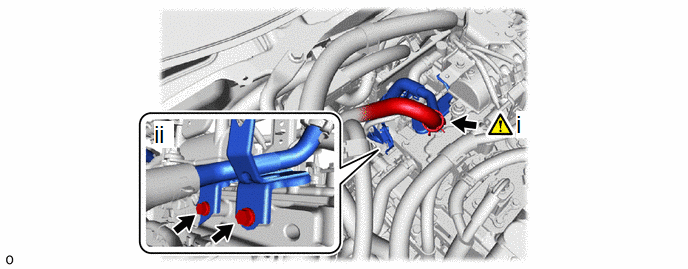

    1. GTY990761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to disconnect the water hose sub-assembly D.
        NOTE:
        • Do not apply excessive force to the water hose sub-assembly D.
        • Prepare a drain pan or cloth in case the coolant leaks.
      2. Remove the 2 bolts.

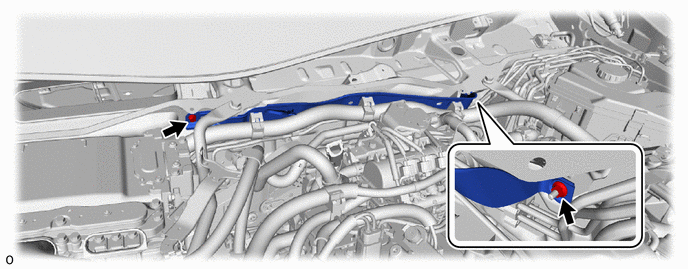

  12. REMOVE FC CONVERTER POWER OUTLET STEERING BRACKET LH
    1. GTY992713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HEATER ACCESSORY ASSEMBLY WITH WATER HOSE SUB-ASSEMBLY D

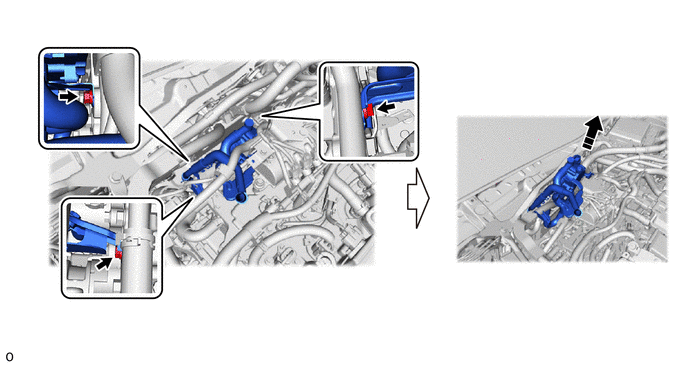

    1. GTY990967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  14. REMOVE HEATER ACCESSORY ASSEMBLY

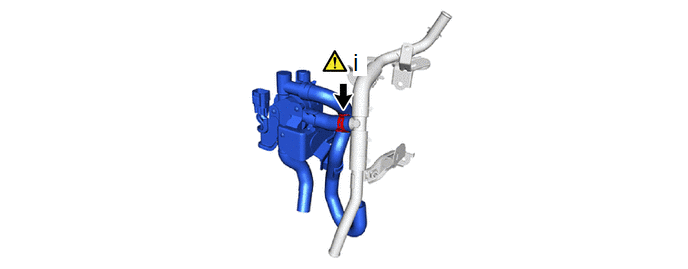

    1. GTY990589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to remove the heater accessory assembly.
        NOTE:
        • Do not apply excessive force to the heater accessory assembly.
        • Prepare a drain pan or cloth in case the coolant leaks.
