Installation [11/2020 - ]: Procedure
- INSTALL HEATER ACCESSORY ASSEMBLY

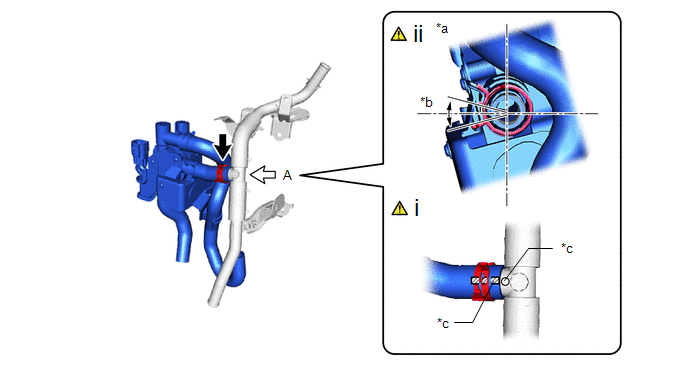

*a View A *b Hose Clip Installation Angle (30°) *c Marking (White) - - - Align the positioning rib of the water hose sub-assembly D with the heater accessory assembly marking position and connect the heater accessory assembly.NOTE:
Do not apply excessive force to the heater accessory assembly.
- Make sure to install the hose clip within the range shown in the illustration.
- Align the positioning rib of the water hose sub-assembly D with the heater accessory assembly marking position and connect the heater accessory assembly.
- INSTALL HEATER ACCESSORY ASSEMBLY WITH WATER HOSE SUB-ASSEMBLY D
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- INSTALL FC CONVERTER POWER OUTLET STEERING BRACKET LH
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
- CONNECT WATER HOSE SUB-ASSEMBLY D

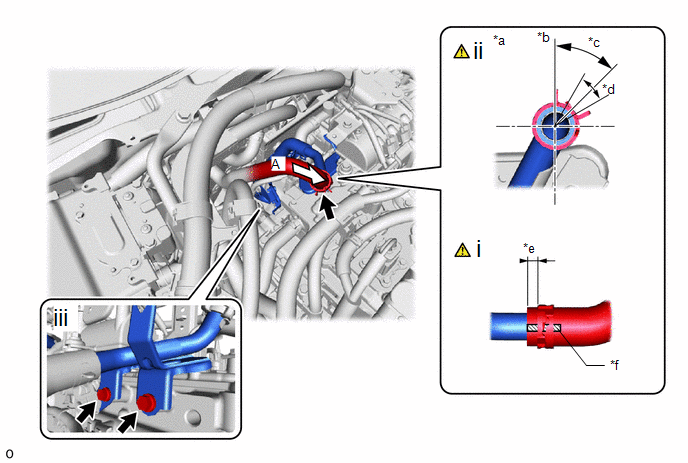

*a View A *b Vehicle Front *c Hose Clip Installation Range (45° to the Right of the Front of the Vehicle) *d Hose Clip Installation Angle (30°) *e Hose Clip Installation Range (3 to 7 mm (0.119 to 0.276 in.)) *f Marking (White) - Connect the water hose sub-assembly D as shown in the illustration.NOTE:
Do not apply excessive force to the water hose sub-assembly D.
- Make sure to install the hose clip within the range shown in the illustration.
- Install the 2 bolts.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- Connect the water hose sub-assembly D as shown in the illustration.
- CONNECT WATER HOSE SUB-ASSEMBLY B
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- CONNECT STACK WIRE
- CONNECT FC AIR COMPRESSOR MOTOR CABLE ASSEMBLY
- CONNECT FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)
- CONNECT FLOOR UNDER WIRE
- CONNECT NO. 1 BATTERY PACK WIRE
- CONNECT HEATER ACCESSORY ASSEMBLY

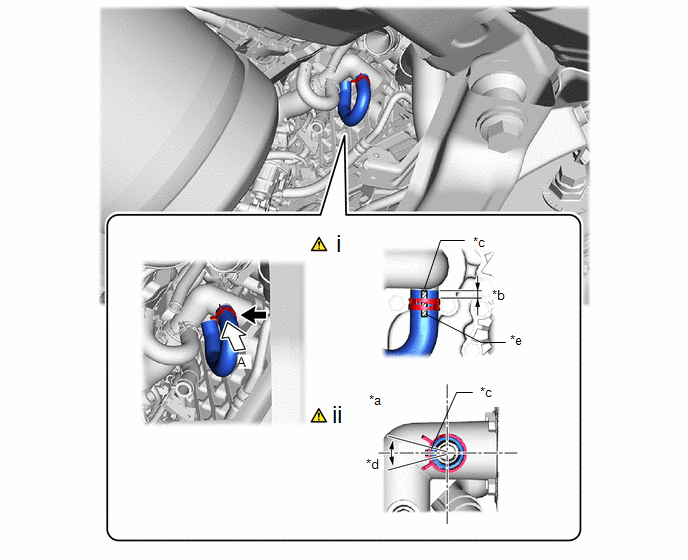

*a View A *b Vehicle Front *c Hose Clip Installation Range (45° to the Right of the Front of the Vehicle) *d Hose Clip Installation Angle (30°) *e Hose Clip Installation Range (3 to 7 mm (0.119 to 0.276 in.)) *f Marking (White) - Connect the heater accessory assembly as shown in the illustration.NOTE:
Do not apply excessive force to the heater accessory assembly.
- Make sure to install the hose clip within the range shown in the illustration.
- Connect the heater accessory assembly as shown in the illustration.
- CONNECT WATER HOSE

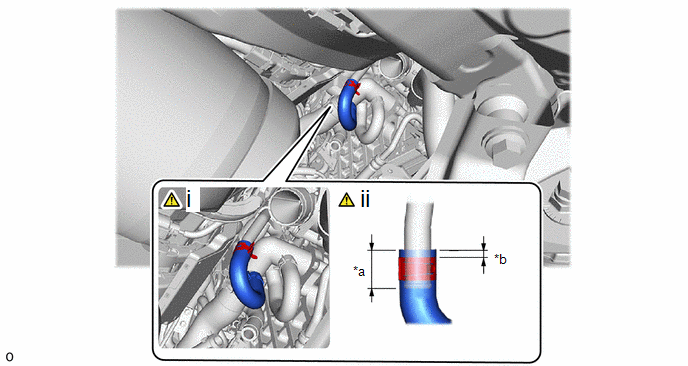

*a Hose Insertion Position (22 to 30 mm (0.867 to 1.18 in.)) *b Hose Clip Installation Range (2 to 5 mm (0.0787 to 0.196 in.)) - Connect the water hose as shown in the illustration.NOTE:
Do not apply excessive force to the water hose.
- Make sure to install the hose clip within the range shown in the illustration.
- Connect the water hose as shown in the illustration.
- INSTALL WATER PUMP ASSEMBLY WITH MOTOR
Refer to INSTALLATION [11/2020 - ]
- INSTALL FRONT WIPER MOTOR AND LINK
Refer to INSTALLATION [11/2020 - ]
