Removal [11/2020 - ]: Procedure

Refer to REMOVAL [11/2020 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

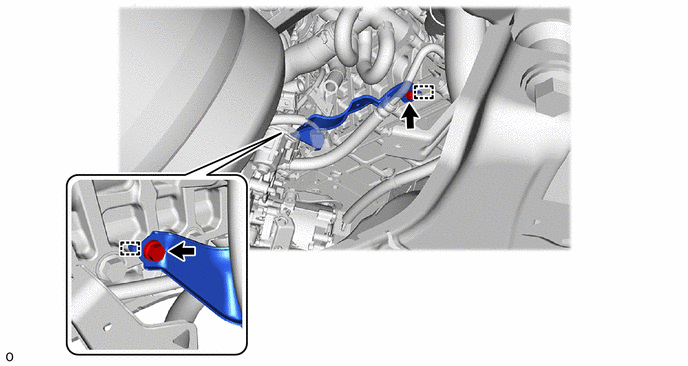

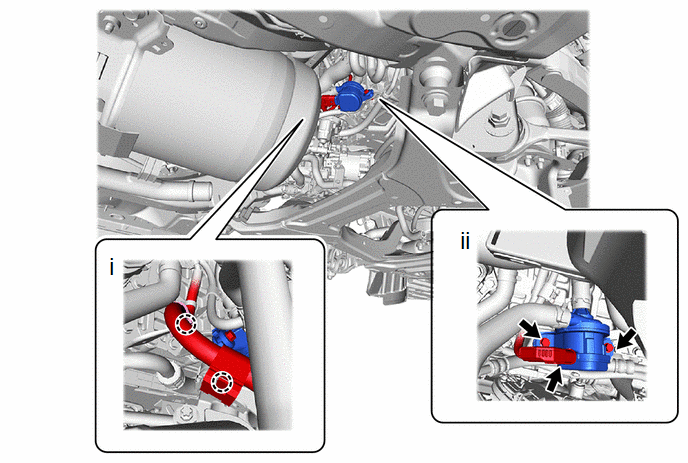

   1. Detach the claw and disconnect the wire harness.
   2. Disconnect the connector and remove the 2 bolts.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

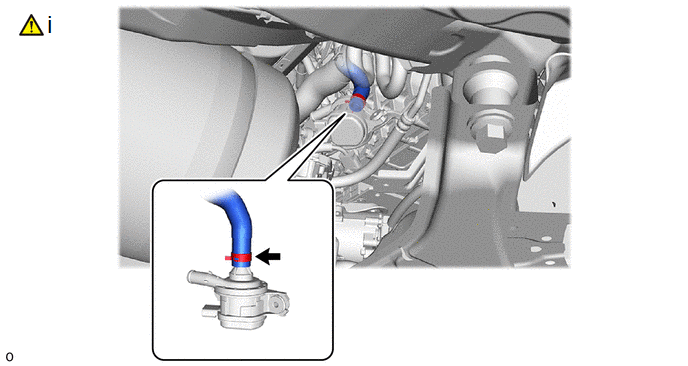

   1. Using pliers, grip the claws of the clip and slide the clip to disconnect the water hose sub-assembly.
      NOTE:

      • Do not apply excessive force to the water hose sub-assembly.
      • Prepare a drain pan or cloth in case the coolant leaks.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

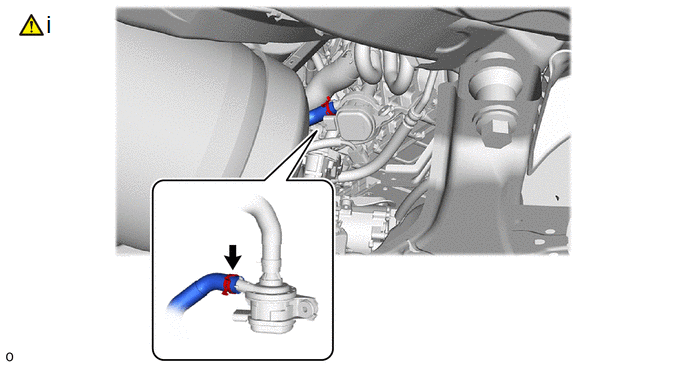

   1. Using pliers, grip the claws of the clip and slide the clip to disconnect the heater accessory assembly.
      NOTE:

      • Do not apply excessive force to the heater accessory assembly.
      • Prepare a drain pan or cloth in case the coolant leaks.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
