Removal [12/2023 - ]: Procedure

  1. REMOVE RADIATOR WITH CONDENSER ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. DISCONNECT NO. 1 DISCHARGE HOSE SUB-ASSEMBLY

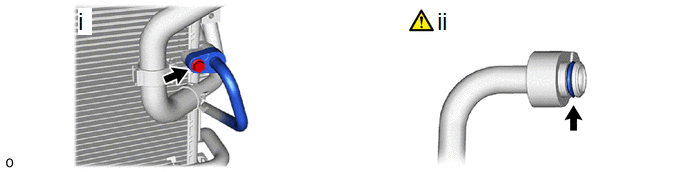

    1. GTY992751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 1 discharge hose sub-assembly.
      2. Remove the O-ring from the No. 1 discharge hose sub-assembly.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  3. REMOVE COOLER CONDENSER ASSEMBLY

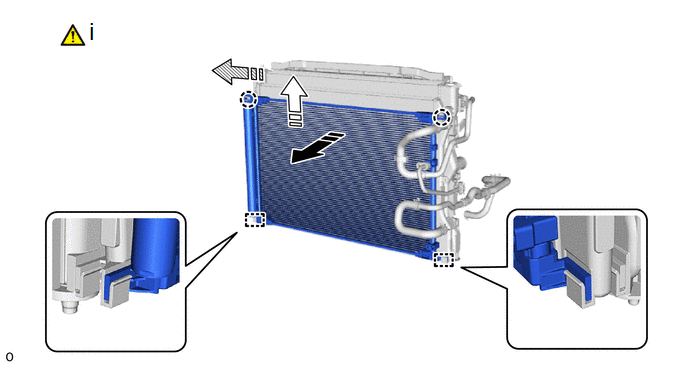

    1. GTY990476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
      1. Detach the claw and guide and remove the cooler condenser assembly as shown in the illustration.
        NOTE:

        Do not damage the cooler condenser assembly and radiator assembly when removing the cooler condenser assembly.
