Installation [11/2020 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)		Install in this Direction (2)
   	Install in this Direction (3)	-	-

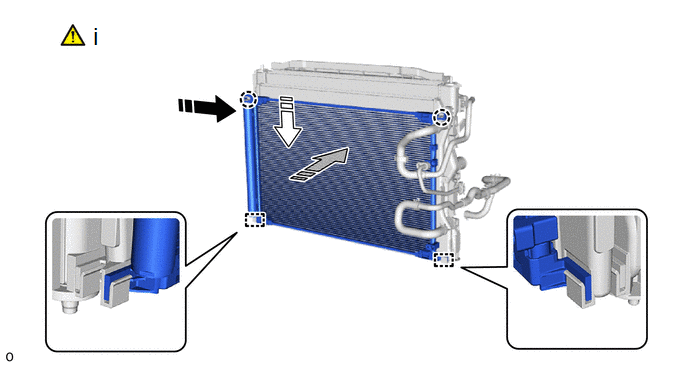

   1. Attach the guide and claw and install the cooler condenser assembly as shown in the illustration.
      NOTE:

      Do not damage the cooler condenser assembly and radiator assembly when removing the cooler condenser assembly.

      HINT:

      If a new cooler condenser assembly is installed, add compressor oil to the condenser as follows.

      Capacity

      Add 40 cc (1.35 fl. oz)

      Compressor Oil

      ND-OIL 11 or equivalent

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

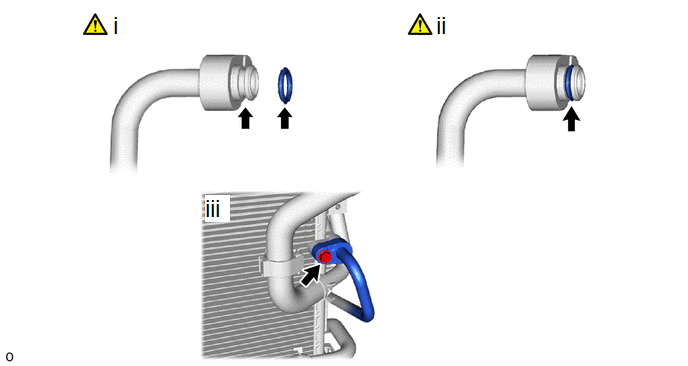

   1. Remove the vinyl tape from the No. 1 discharge hose sub-assembly and connecting part of the cooler condenser assembly and then sufficiently apply compressor oil to a new O-ring and the fitting surface of the No. 1 discharge hose sub-assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

   2. Install the O-ring to the No. 1 discharge hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

   3. Connect the No. 1 discharge hose sub-assembly to the cooler condenser assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

Refer to INSTALLATION [11/2020 - 11/2021] , or refer to INSTALLATION [11/2021 - 12/2022] , or refer to INSTALLATION [12/2022 - ]
