Removal [11/2021 - 12/2022]: Procedure

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 4

Refer to REMOVAL [11/2021 - 12/2022]

Refer to PROCEDURE - Step 8

Refer to PROCEDURE - Step 18

Refer to PROCEDURE - Step 19

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Bolt (A)

   *b

   Bolt (B)

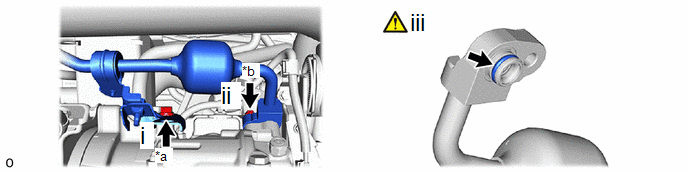

   1. Remove the bolt (A).
   2. Remove the bolt (B) and disconnect the No. 1 discharge hose sub-assembly.
   3. Remove the O-ring from the No. 1 discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

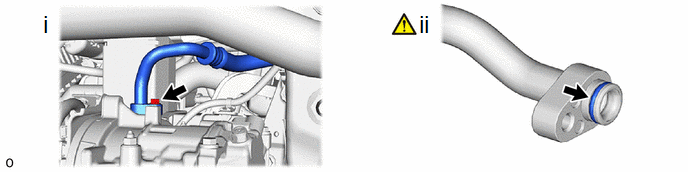

   1. Remove the bolt (B) and disconnect the suction hose sub-assembly A.
   2. Remove the O-ring from the suction hose sub-assembly A.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

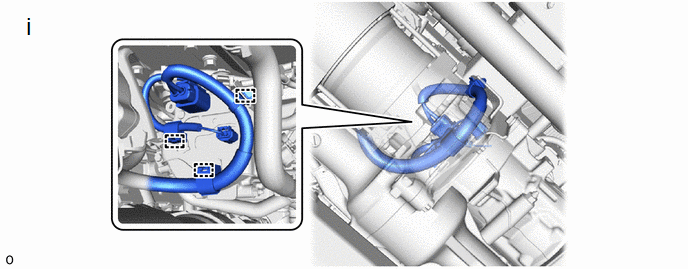

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

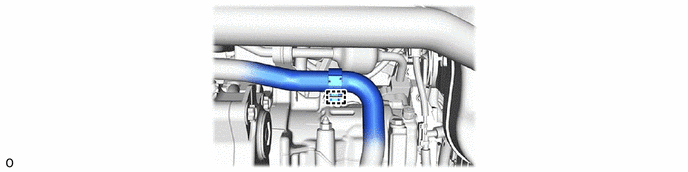

   1. Detach the clamp.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

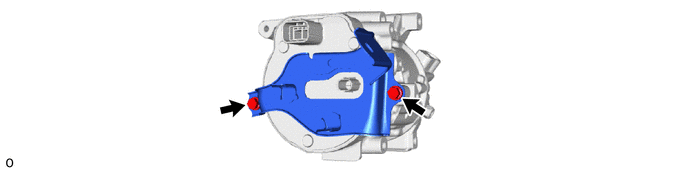

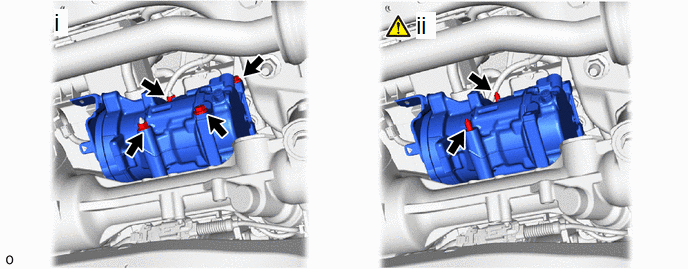

   1. Remove the 2 bolts and 2 nuts.
   2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Connector (A)	*b	Connector (B)
   *c	Green-colored Lock	-	-
   	Slide	-	-

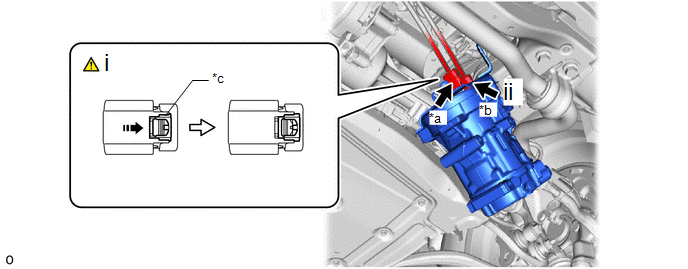

   1. While holding the compressor with motor assembly, slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector.
      WARNING:

      Make sure to wear insulating gloves.

      NOTE:

      Insulate the disconnected terminals and connector with vinyl tape.

   2. While holding the compressor with motor assembly, disconnect the connector (B) and remove the compressor with motor assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
