Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota Mirai, 2023 Toyota Mirai, and 2022 Toyota Mirai. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR LIDAR CLEANER COVER

    See step  1

  2. REMOVE REAR LIDAR ADVANCED DRIVE SENSOR ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

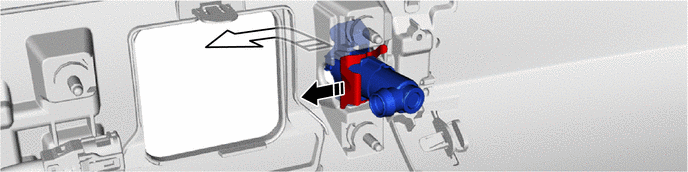

  3. REMOVE REAR LIDAR CLEANER NOZZLE
    1. GTY1167738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
