Removal [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2024 Toyota Mirai, 2023 Toyota Mirai, and 2022 Toyota Mirai. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE NO. 1 FLOOR UNDER COVER
Refer to PROCEDURE - Step 8 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 8 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 8 [12/2023 - ]

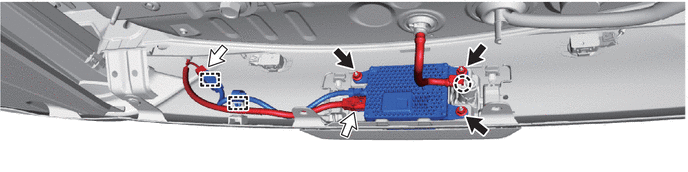

- REMOVE REAR LIDAR ADVANCED DRIVE SENSOR ASSEMBLY NOTE:
- Do not reuse the rear LiDAR advanced drive sensor assembly if it has been deformed wire harness clamp.
- The rear LiDAR advanced drive sensor assembly is a precision instrument. Take care not to damage it during removal and installation.
- If the lens surface of the rear LiDAR advanced drive sensor assembly is dirty, install the rear LiDAR advanced drive sensor assembly after cleaning it with a soft cloth or the like while taking care not to damage it.
