Removal [11/2020 - ]: Procedure

REMOVE REAR NO. 4 FLOOR BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 2 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 2 [12/2023 - ]
REMOVE REAR NO. 3 FLOOR BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 3 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 3 [12/2023 - ]

REMOVE NO. 2 FLOOR BOARD SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR FLOOR SIDE MEMBER COVER LH
Refer to PROCEDURE - Step 6 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 6 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ]

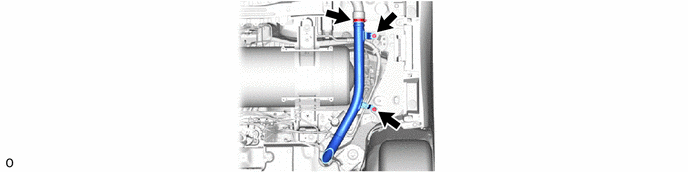

REMOVE NO. 3 FC EXHAUST PIPE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

If the water remaining inside the No. 3 FC exhaust pipe is hot, do not touch the water directly.
Touching the water remaining inside the No. 3 FC exhaust pipe when it is hot could result in burns.

NOTE:

If the inner surface of the No. 2 FC exhaust pipe and No. 3 FC exhaust pipe insertion portion are damaged or broken, replace them with new ones.
If the clamp is damaged or rusty, replace it with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

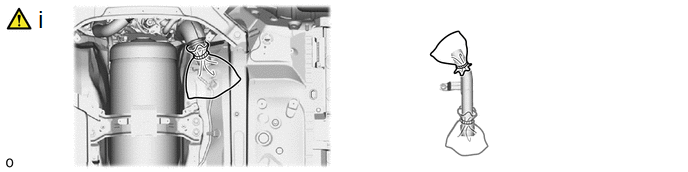

To prevent contamination by foreign matter or water droplets, cover the connecting portions of the No. 3 FC exhaust pipe and No. 2 FC exhaust pipe with plastic bags.

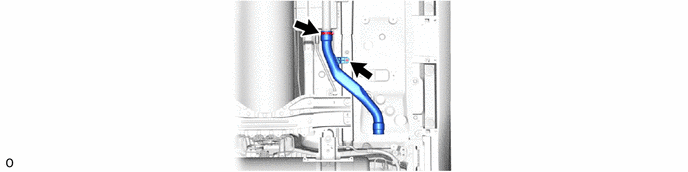

REMOVE NO. 2 FC EXHAUST PIPE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

If the water remaining inside the No. 2 FC exhaust pipe is hot, do not touch the water directly.
Touching the water remaining inside the No. 2 FC exhaust pipe when it is hot could result in burns.

NOTE:

If the inner surface of the No. 2 FC exhaust pipe and FC exhaust tailpipe assembly insertion portion are damaged or broken, replace them with new ones.
If the clamp is damaged or rusty, replace it with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

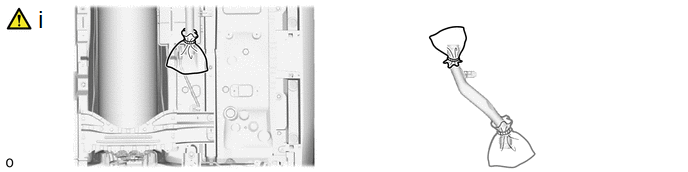

To prevent contamination by foreign matter or water droplets, cover the connecting portions of the No. 2 FC exhaust pipe and FC exhaust tailpipe assembly with plastic bags.

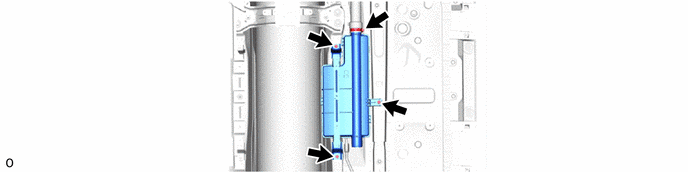

REMOVE FC EXHAUST TAILPIPE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

If the water remaining inside the FC exhaust tailpipe assembly is hot, do not touch the water directly.
Touching the water remaining inside the FC exhaust tailpipe assembly when it is hot could result in burns.

NOTE:

If the inner surface of the No. 1 FC exhaust pipe and FC exhaust tailpipe assembly insertion portion are damaged or broken, replace them with new ones.
If the clamp is damaged or rusty, replace it with a new one.

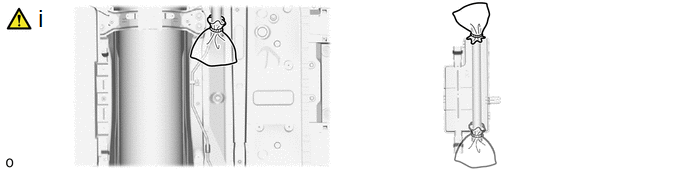

To prevent contamination by foreign matter or water droplets, cover the connecting portions of the FC exhaust tailpipe assembly and No. 1 FC exhaust pipe with plastic bags.

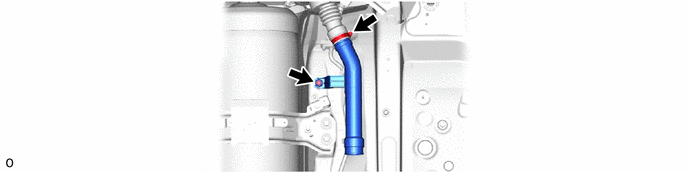

REMOVE NO. 1 FC EXHAUST PIPE

WARNING:

If the water remaining inside the No. 1 FC exhaust pipe is hot, do not touch the water directly.
Touching the water remaining inside the No. 1 FC exhaust pipe when it is hot could result in burns.

NOTE:

If the inner surface of the FC stack air outlet hose and No. 1 FC exhaust pipe insertion portion are damaged or broken, replace them with new ones.
If the clamp is damaged or rusty, replace it with a new one.

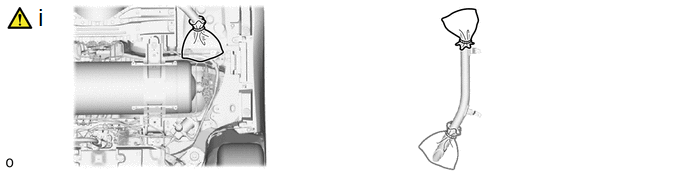

To prevent contamination by foreign matter or water droplets, cover the connecting portions of the No. 1 FC exhaust pipe and FC stack air outlet hose with plastic bags.
