Removal [11/2020 - ]: Procedure

CAUTIONS FOR INTAKE SYSTEM COMPONENTS

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step 3 [11/2020 - 11/2021], or see step 3 [11/2021 - 12/2022], or see step 3 [12/2022 - 12/2023], or see step 3 [12/2023 - ]

REMOVE FRONT COMPARTMENT UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 20 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 20 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 20 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 20 [12/2023 - ]
REMOVE REAR NO. 4 FLOOR BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 2 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 2 [12/2023 - ]

REMOVE FC STACK AIR INLET HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step 12

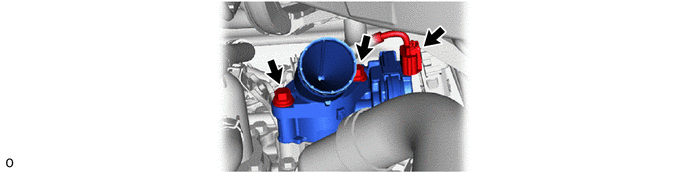

REMOVE FC AIR PRESSURE REGULATOR ASSEMBLY (AIR SEALING VALVE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

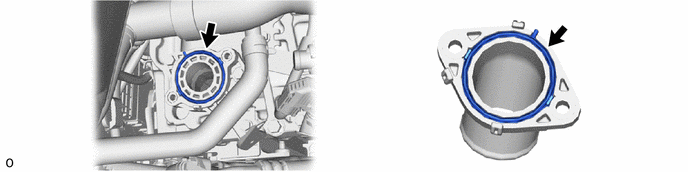

Do not touch the mesh of the air particulate filter.
If the air particulate filter is removed from the FC stack air inlet pipe assembly or is deformed, replace the FC stack air inlet pipe assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

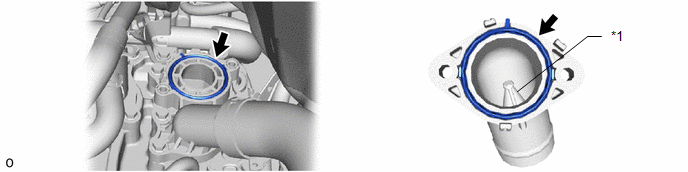

Air Particulate Filter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

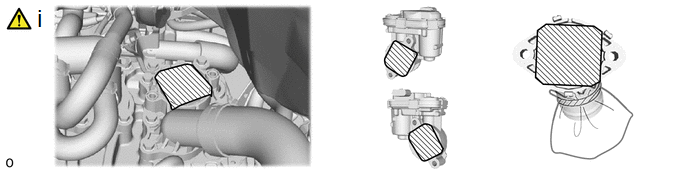

To prevent contamination by foreign matter or water droplets, cover the connecting portions of the FC air pressure regulator assembly (air sealing valve), FC stack air inlet pipe assembly and FC stack air and water inlet with protective tape.

REMOVE FC STACK AIR OUTLET HOSE ASSEMBLY

See step 4

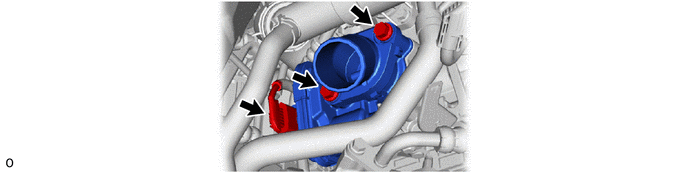

REMOVE FC AIR PRESSURE REGULATOR ASSEMBLY (AIR PRESSURE REGULATING VALVE)

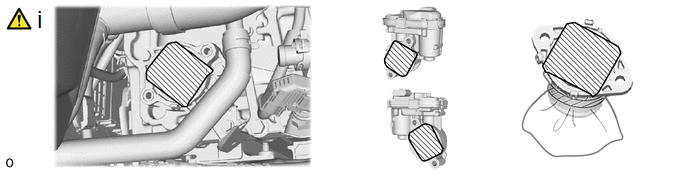

To prevent contamination by foreign matter or water droplets, cover the connecting portions of the FC air pressure regulator assembly (air pressure regulating valve), FC stack air outlet pipe assembly and FC stack air outlet with protective tape.
