Installation [11/2020 - ]: Procedure

  1. INSTALL FC COOLING WATER TEMPERATURE CONTROL VALVE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • When installing, do not hold the FC cooling water temperature control valve by its port portion.
    • If the FC cooling water temperature control valve has been struck or dropped, replace it.

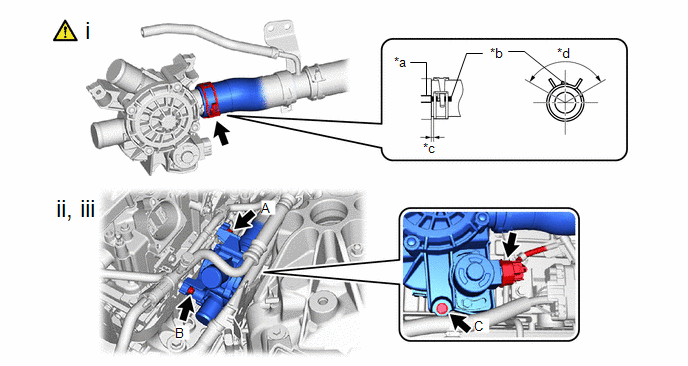

    1. GTY1003907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper *b Hose Paint Mark
      *c 2 to 7 mm (0.0787 to 0.276 in.) *d 120°
      1. Install the No. 6 FC radiator hose to the FC cooling water temperature control valve, and slide the clip to secure the hose as shown in the illustration.
        NOTE:
        • Align the hose and the hose clip at the locations shown in the illustration and install them.
        • Make sure the No. 6 FC radiator hose is securely inserted to the stopper.
      2. When connecting, if it is difficult to insert the hose, coat it with new coolant (Toyota genuine FC stack coolant).
      3. Connect the connector and temporarily install the FC cooling water temperature control valve with the bolt A and bolt B.
      4. Tighten the 3 bolts.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  2. CONNECT NO. 7 FC RADIATOR HOSE

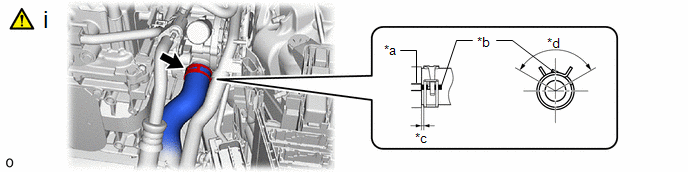

    1. GTY1003098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper *b Hose Paint Mark
      *c 2 to 7 mm (0.0787 to 0.276 in.) *d 120°
      1. Connect the No. 7 FC radiator hose to the FC cooling water temperature control valve, and slide the clip to secure the hose as shown in the illustration.
        NOTE:
        • Align the hose and the hose clip at the locations shown in the illustration and install them.
        • Make sure the No. 7 FC radiator hose is securely inserted to the stopper.
      2. When connecting, if it is difficult to insert the No. 7 FC radiator hose, coat it with new coolant (Toyota genuine FC stack coolant).
  3. INSTALL NO. 9 FC RADIATOR HOSE

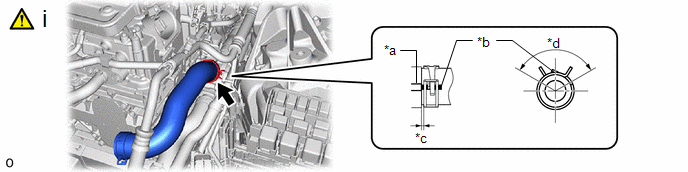

    1. GTY1002857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper *b Hose Paint Mark
      *c 2 to 7 mm (0.0787 to 0.276 in.) *d 120°
      1. Install the No. 9 FC radiator hose to the FC cooling water temperature control valve, and slide the clip to secure the hose as shown in the illustration.
        NOTE:
        • Align the hose and the hose clip at the locations shown in the illustration and install them.
        • Make sure the No. 9 FC radiator hose is securely inserted to the stopper.
      2. When connecting, if it is difficult to insert the No. 9 FC radiator hose, coat it with new coolant (Toyota genuine FC stack coolant).
  4. INSTALL NO. 2 COOLER BRACKET

    Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

  5. CONNECT STACK WIRE
  6. INSTALL NO. 2 RELAY BLOCK COVER
  7. INSTALL FC CONVERTER POWER OUTLET BRACKET

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  8. CONNECT FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

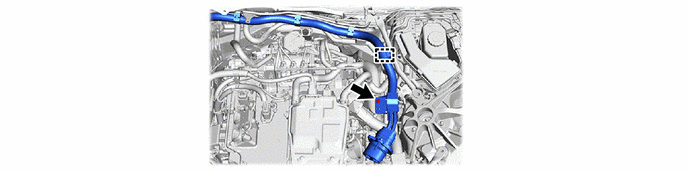

    1. GTY1004887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  9. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - ]

  10. INSTALL FC COOLING WATER ION EXCHANGER ASSEMBLY

    Refer to INSTALLATION [11/2020 - ]
