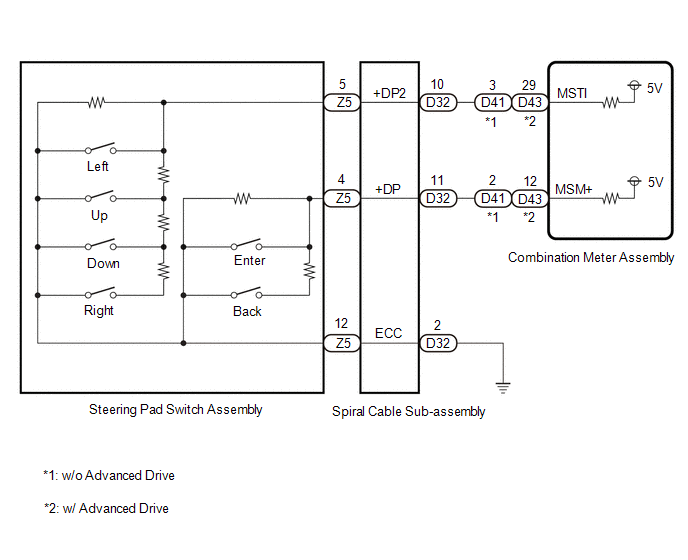

Steering Pad Switch Circuit [11/2021 - 12/2023]: Wiring Diagram

GTY992048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
