Speed Signal Circuit [12/2023 - ]: Wiring Diagram

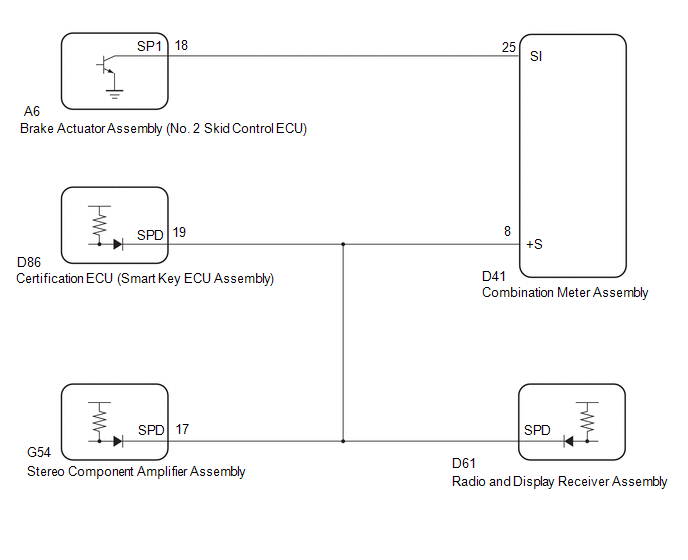

w/ Front LiDAR Sensor

GTY1210407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

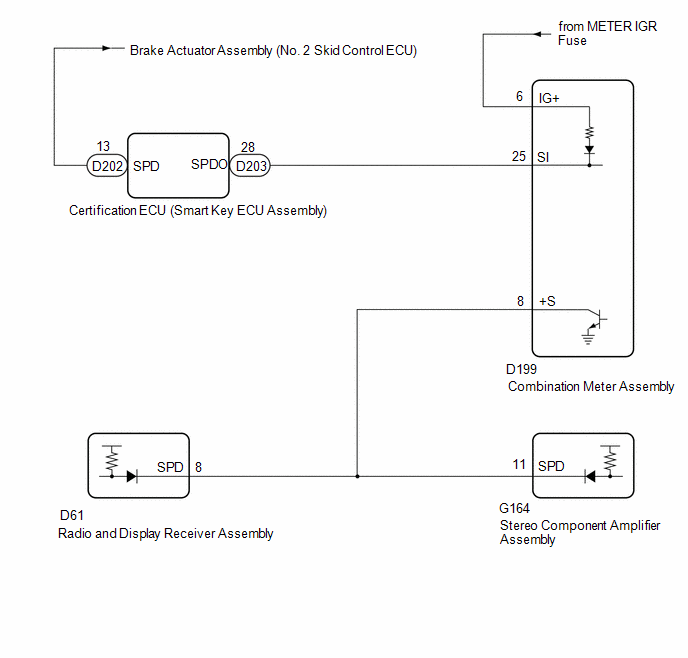

w/o Front LiDAR Sensor

GTY1209914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
