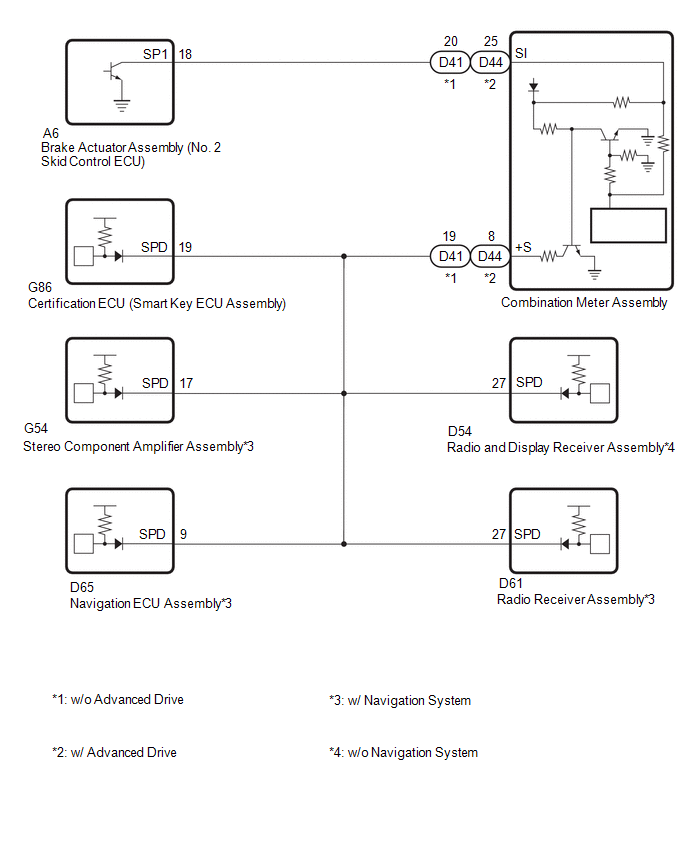

Speed Signal Circuit [11/2020 - 11/2021]: Wiring Diagram

GTY992591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
