Removal [12/2022 - 12/2023]: Procedure

  1. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH

    Refer to REMOVAL [12/2022 - 12/2023]

  2. REMOVE FRONT FLEXIBLE HOSE BRACKET LH

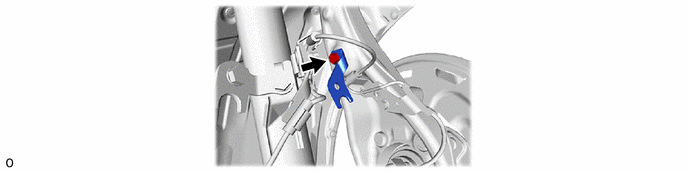

    1. GTY979319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT TIE ROD ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 10
  4. LOOSEN STEERING KNUCKLE LH
    1. GTY979851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT FRONT UPPER NO. 1 SUSPENSION ARM ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  6. DISCONNECT FRONT UPPER NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Perform the same procedure as for the front upper No. 1 suspension arm assembly LH.
  7. REMOVE STEERING KNUCKLE LH
    1. GTY979851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
