Removal [12/2023 - ]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2023 - ]
  2. DISABLE BRAKE CONTROL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  3. REMOVE FRONT WHEEL

    Refer to REMOVAL [12/2023 - ]

  4. DRAIN BRAKE FLUID
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.
  5. REMOVE FRONT DISC BRAKE FITTING KIT

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DISC BRAKE PAD KIT
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  7. REMOVE FRONT ANTI SQUEAL SHIM KIT

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT FLEXIBLE HOSE
    1. GTY976578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE DISC BRAKE CYLINDER ASSEMBLY LH
    1. GTY976599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT DISC

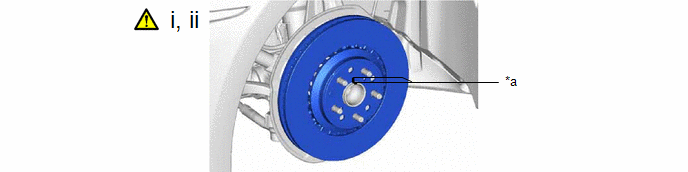

    1. GTY1209018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Matchmark - -
      1. Put matchmarks on the front disc and the front axle hub sub-assembly LH.

        HINT:

        Not required when replacing the front disc.

      2. Remove the front disc.
