Removal [12/2022 - 12/2023]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  5. REMOVE MULTIPLEX NETWORK FRONT DOOR ECU LH (w/ Reverse Shift-linked Mirror)

    Refer to PROCEDURE - Step 16

  6. REMOVE FRONT DOOR NO. 2 SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 18

  7. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 17

  8. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

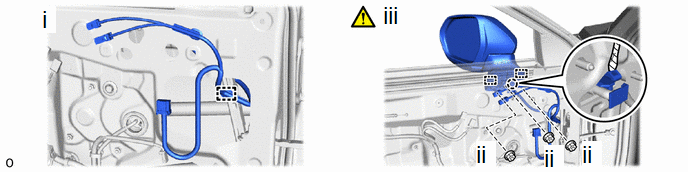

    1. GTY1017067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the wire harness clamp.
      2. Remove the 3 nuts.
      3. Using a thin-bladed screwdriver, detach the claw and guide and remove the outer rear view mirror assembly LH.
        NOTE:

        Hold the outer rear view mirror assembly LH with one hand so that it does not drop.

  9. REMOVE WIRE HARNESS CLAMP

    HINT:

    Perform this procedure only when replacement of the wire harness clamp is necessary.

    1. w/o Advanced Park:
      GTY1015862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Panoramic View Monitor System:
      GTY1015866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Advanced Park:

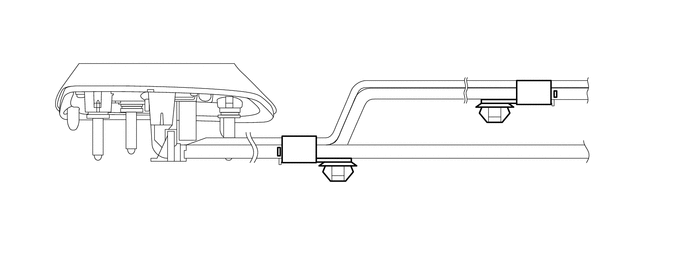

      GTY1018042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
