Removal [11/2020 - 11/2021]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [11/2020 - 12/2022]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the auxiliary negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2020 - 11/2021]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [11/2020 - 11/2021]

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 5

  4. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 6

  5. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 7

  6. REMOVE FRONT BUMPER ASSEMBLY

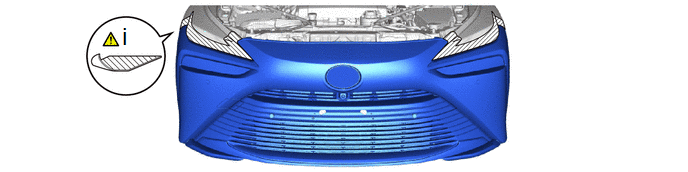

    1. GTY1015799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the front bumper assembly.

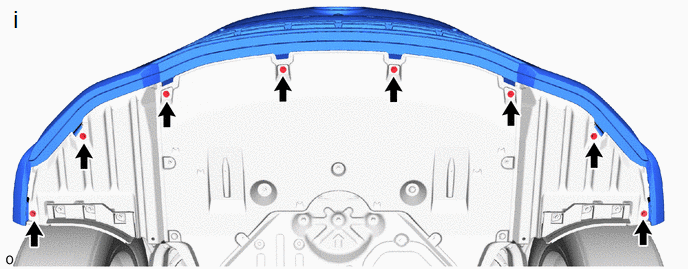

    2. GTY1014940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 8 screws.

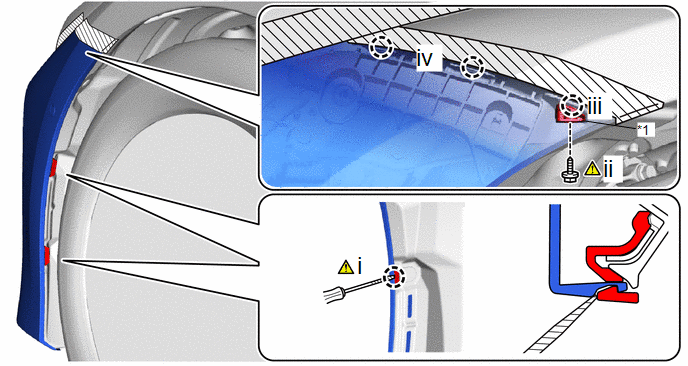

    3. GTY1016566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Bumper Side Mounting Bracket LH - -
      1. Using a screwdriver, detach the claw as shown in the illustration.

        HINT:

        Tape the screwdriver tip before use.

      2. Fold back the front fender splash shield sub-assembly LH and remove the screw.
      3. Detach the claw and remove the front bumper side mounting bracket LH.
      4. Detach the claw.
    4. Use the same procedure for the other side.

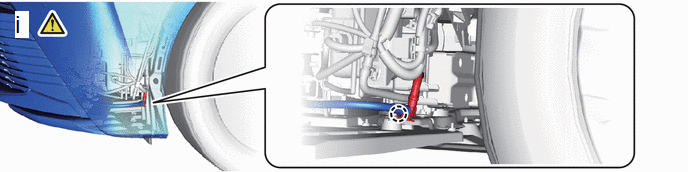

    5. w/ Advanced Drive:
      GTY1166165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the claw and disconnect the front No. 2 LiDAR cleaner hose sub-assembly.

        HINT:

        Prepare a container before performing the procedure.

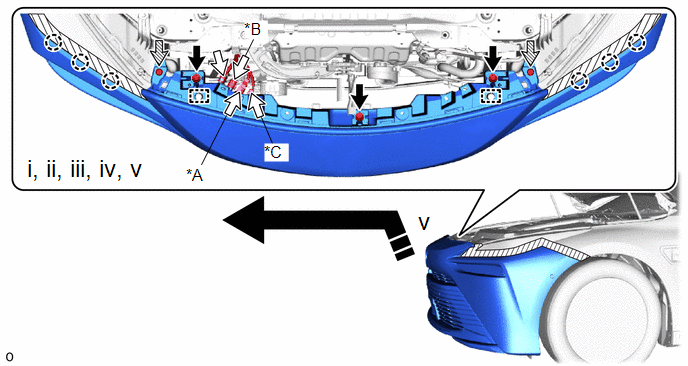

    6. GTY1163295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Drive *B w/ Advanced Park
      *C w/ Panoramic View Monitor System - -
      Remove in this Direction Bolt
      Connector Clip
      1. Disconnect each connector.
      2. Remove the 3 bolts.
      3. Remove the 2 clips.
      4. Detach the claw.
      5. Detach the guide and remove the front bumper assembly as shown in the illustration.

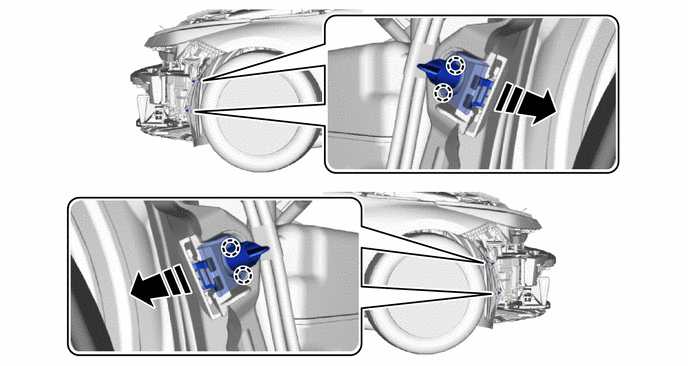

  7. REMOVE PIN HOLD CLIP
    1. GTY1015690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

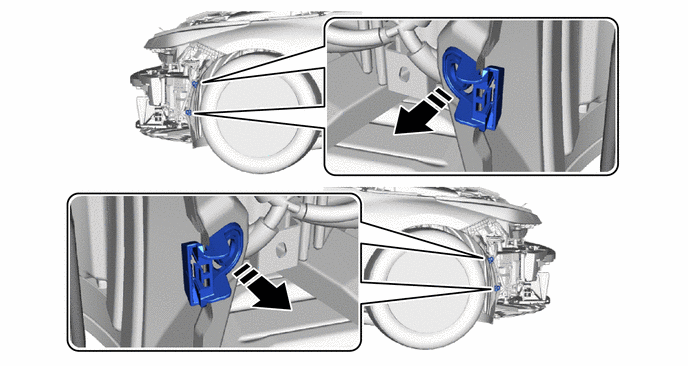

  8. REMOVE FRONT FENDER LINER RETAINER
    1. GTY1015183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
