Removal [11/2021 - 12/2022]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If an SRS part is accidentally deployed, it may cause a serious injury.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [11/2021 - 12/2022]

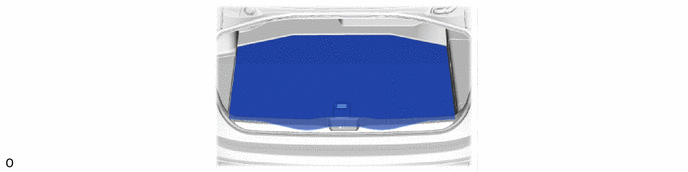

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
    1. GTY1016632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

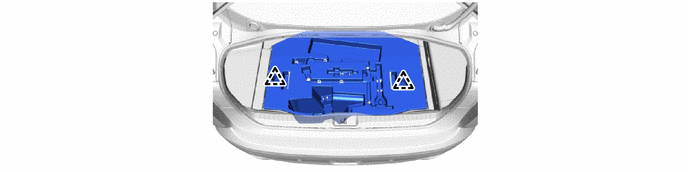

  3. REMOVE TOOL BOX
    1. GTY1017952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

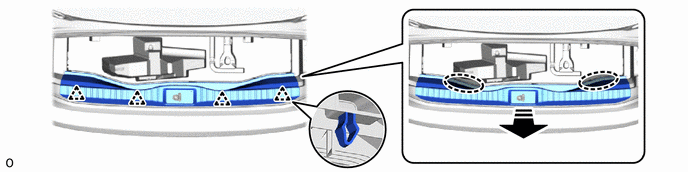

  4. REMOVE REAR FLOOR FINISH PLATE
    1. GTY1165756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

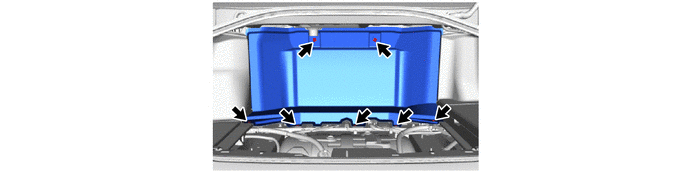

  5. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
    1. GTY1017059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

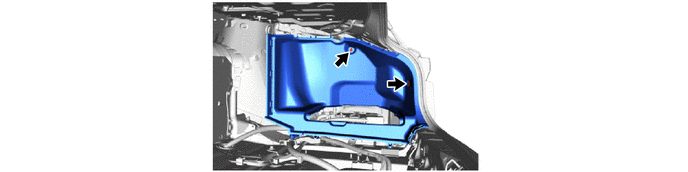

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH
    1. GTY1017060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

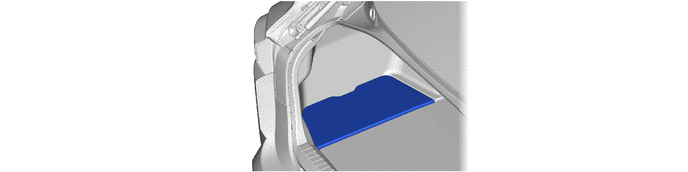

  7. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
    1. GTY1018035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

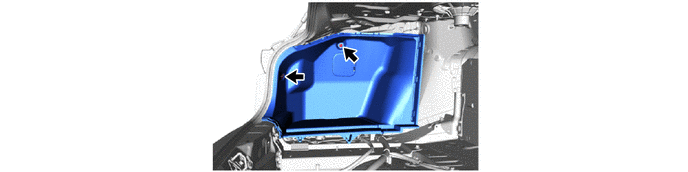

  8. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH
    1. GTY1017058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

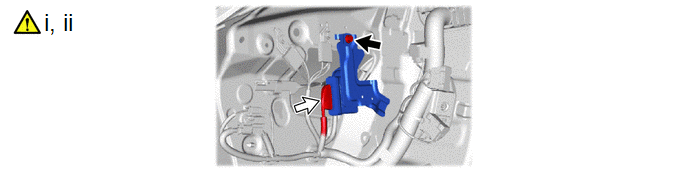

  9. REMOVE MULTIPLEX NETWORK DOOR ECU
    1. GTY1018348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
      1. Remove the bolt.
      2. Disconnect the connector and remove the multiplex network door ECU.
        NOTE:

        Do not has been struck or dropped.
