Parts Location [12/2023 - ]: Illustration

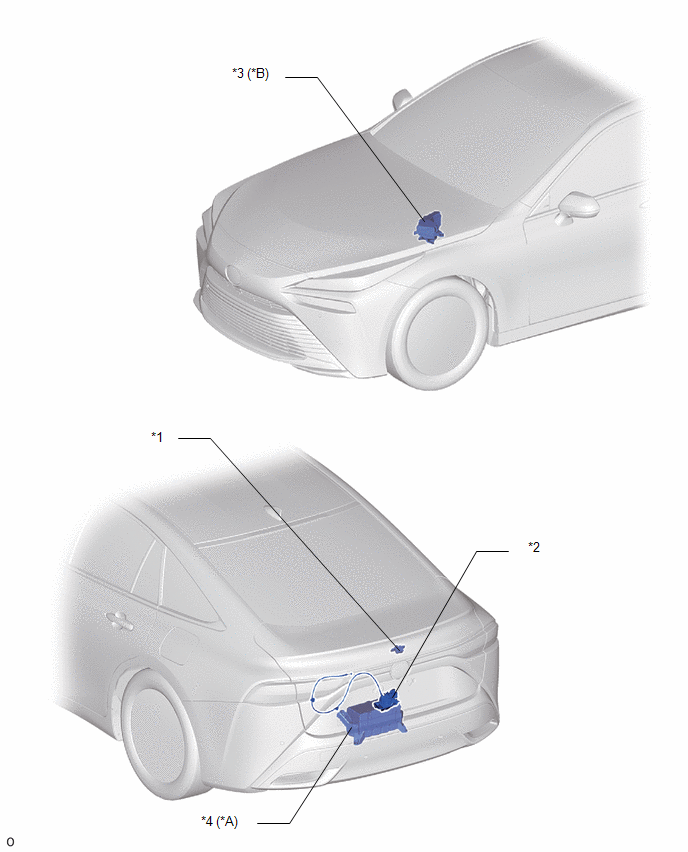

Fig 1: Luggage Compartment Door Opener System Replacement Components (1 Of 2) [12/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Front LiDAR Sensor	*B	w/o Front LiDAR Sensor
*1	LUGGAGE ELECTRICAL KEY SWITCH	*2	LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
*3	NO. 2 FRONT COMPARTMENT RELAY BLOCK - J/B D-ALT FUSE	*4	LUGGAGE ROOM RELAY BLOCK ASSEMBLY - TRUNK OPEN RELAY (TRUNK OPN) - TRUNK OPEN FUSE

Fig 1: Luggage Compartment Door Opener System Replacement Components (2 Of 2) [12/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY	*2	LUGGAGE DOOR OPENING SWITCH ASSEMBLY
*3	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	DRIVER SIDE JUNCTION BLOCK ASSEMBLY (w/ Front LiDAR Sensor) - MPX-B D NO. 1 FUSE POWER DISTRIBUTION BOX ASSEMBLY (w/o Front LiDAR Sensor) - DOOR BACK RELAY (DOOR BACK) - DOOR BACK FUSE	*6	DLC3
