Luggage Compartment Door Opener does not Operate Using Cabin Switch [12/2023 - ]: Wiring Diagram

  1. w/ Front LiDAR Sensor:
    GTY992204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

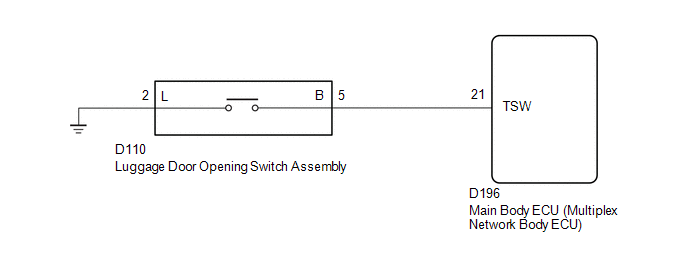

  2. w/o Front LiDAR Sensor:
    GTY1209899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
